Workshop crane foldable 1 ton

Foldable workshop crane / engine hoist / garage crane

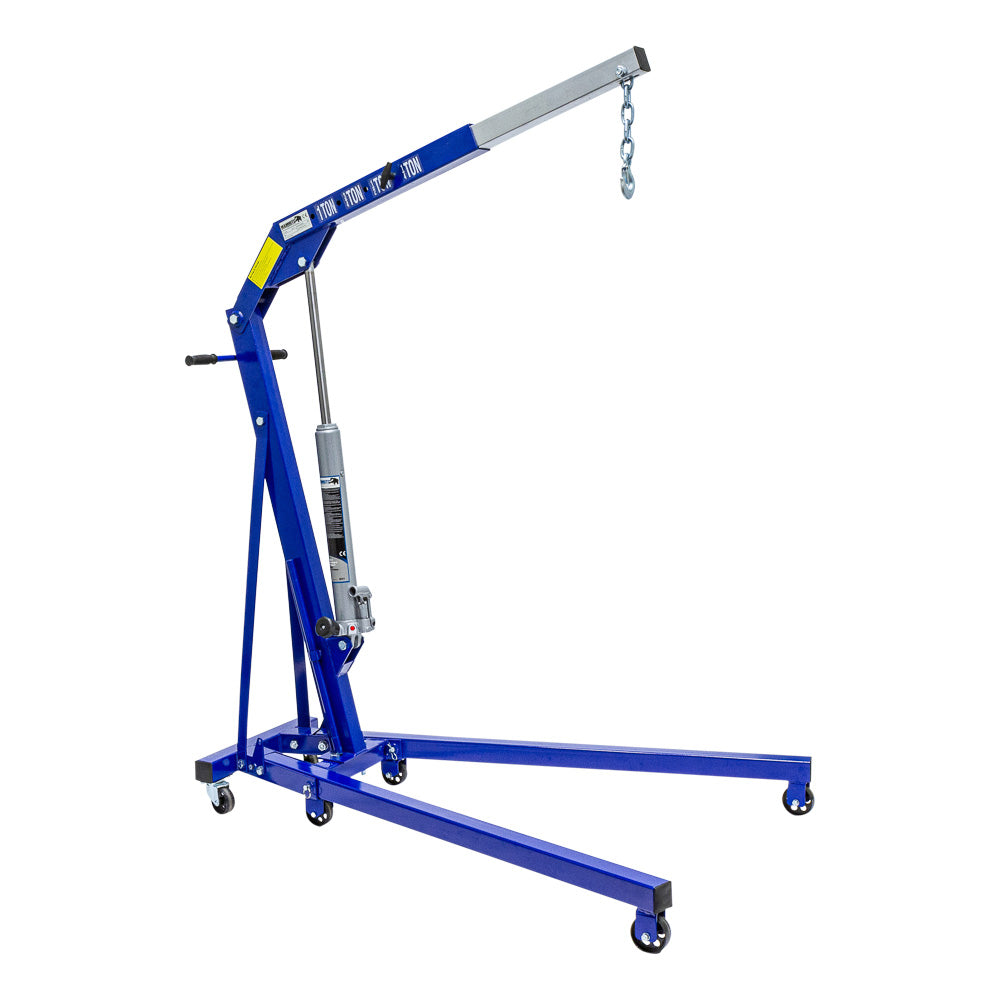

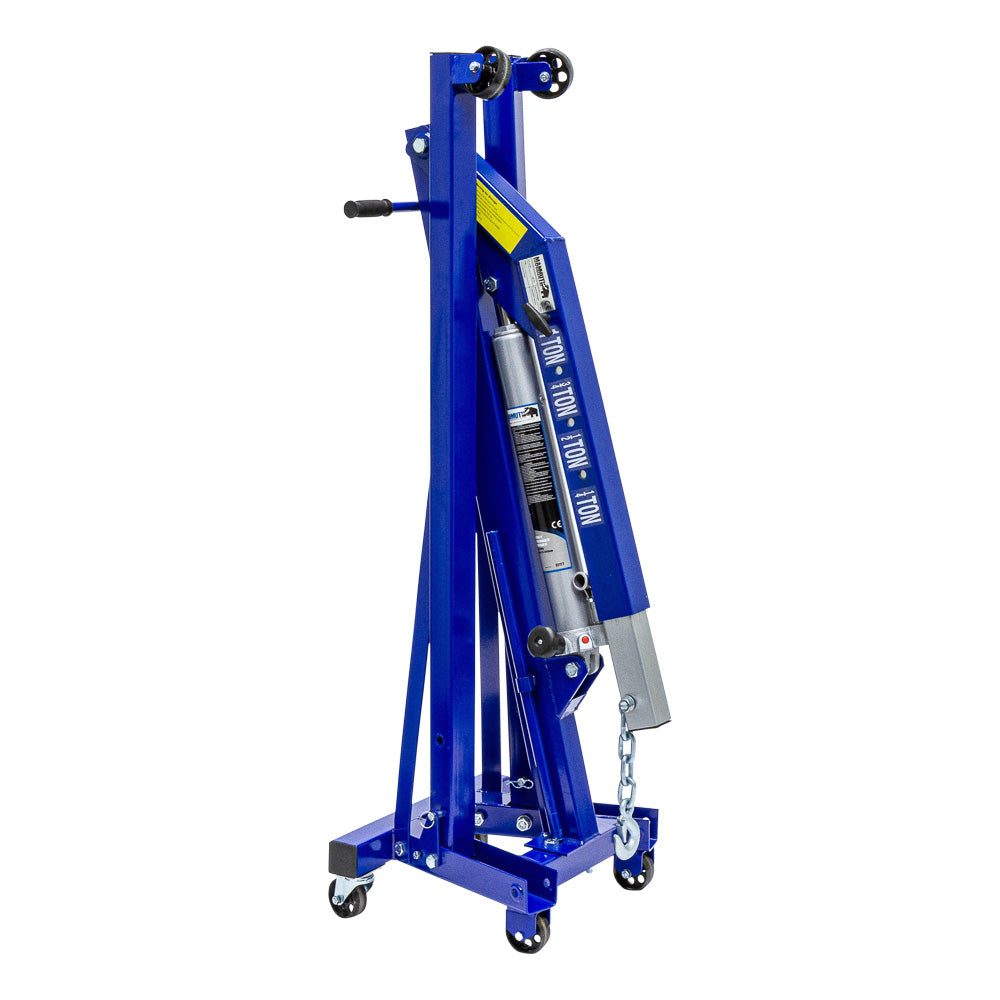

This Mammuth engine hoist is ideal for (dis)assembling engine blocks, but is also widely used for lifting and moving other heavy objects. The arm of the crane can be secured at different positions: 250kg, 500kg, 750kg and 1000kg. The locking pin has a handy handle. The hoist is equipped with a rotary knob to lower the arm, which ensures high ease of use and extra safety. Furthermore, the tap is easy to fold and therefore easy to store.

Specifications:

• height range 1000kg = 1920mm
• height range 750kg = 1990mm
• height range 500kg = 2050mm
• height range 250kg = 2120mm
• total length support arm position 1 = 1080mm
• total length support arm position 2 = 1170mm
• total length support arm position 3 = 1260mm
• total length support arm position 4 = 1350mm
• height of the legs = 160mm
• distance between legs at widest point = 940mm
• dimensions folded = 570 x 485 x 1520mm
