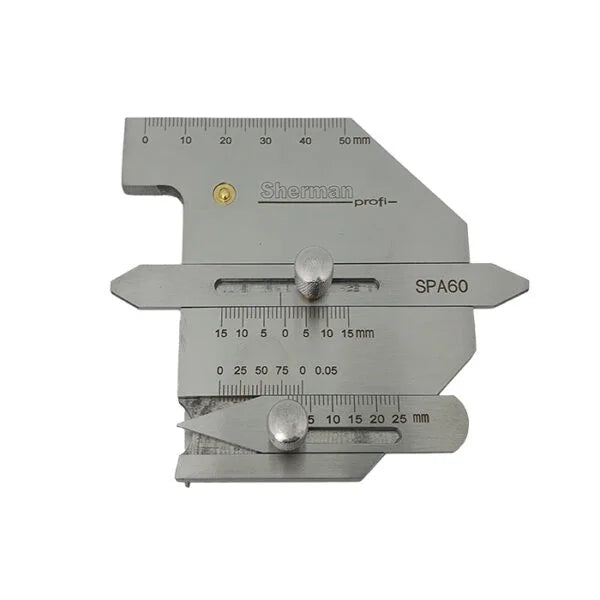

SPA-60 analogue welding height gauge
Regular price
€19,95
SPA-60 analogue welding height gauge
For measuring the width and height of the weld, the size of the joint, the bevel angle and the depth of the undercut of the weld
| Catalog number | NMR0103 |
| Fillet weld height [mm] | 0 – 12 +- 0.2 |
| Butt weld height [mm] | 0 – 15 +- 0.2 |
| Fillet weld thickness [mm] | 0 -12 +- 0.2 |
| Joint width [mm] | 0 – 60 +- 0.3 |
| Flood depth [mm] | 0 – 5 +- 0.1 |
| Bevel angle [º] | 80 – 160 +- 3 |
| Slot width [mm] | 0.5 – 6 +- 0.1 |
| Weight (kg] | 0.248 |
