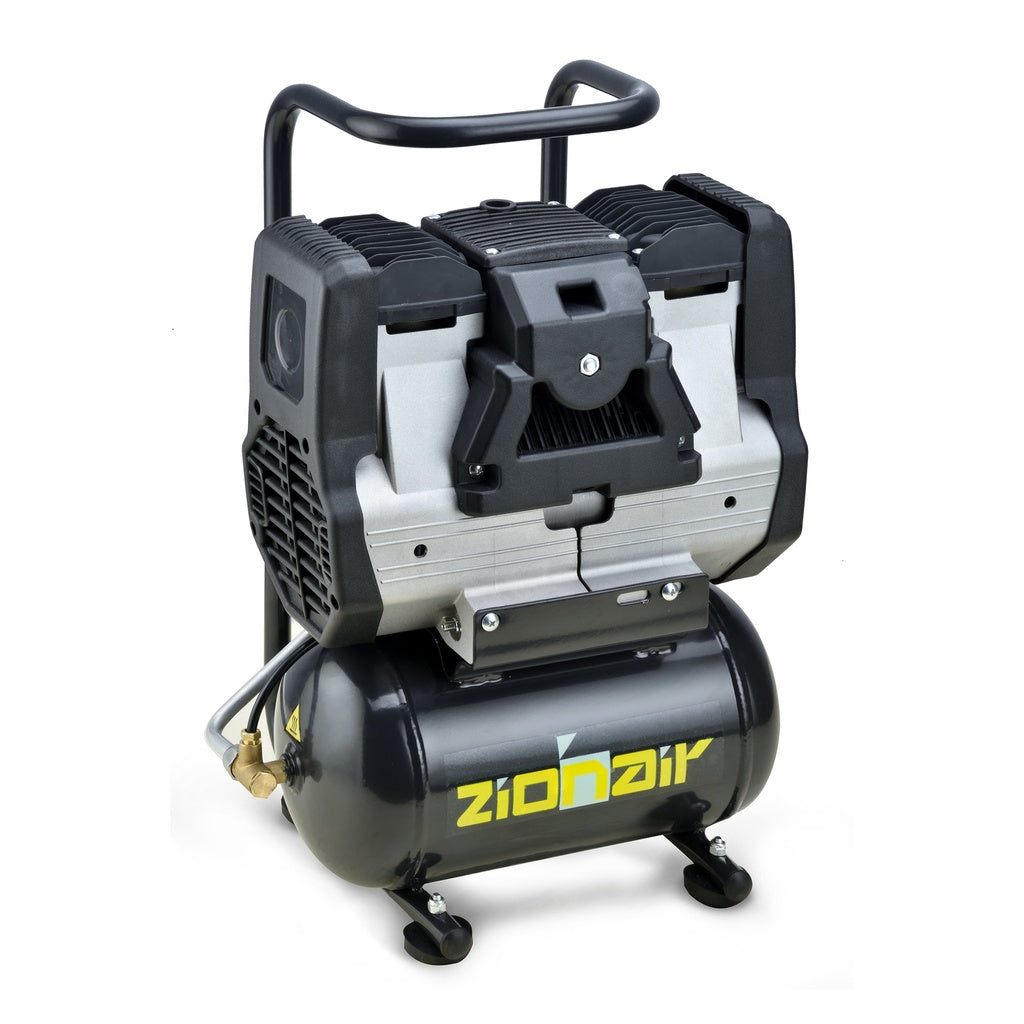

Silent compressor 0.56kW 230V 8 bar 6L tank

Air compressor / silent compressor / maintenance-free compressor / oil-free compressor

ZionAir's new line of silent compressors have a low noise level and deliver high air efficiency. The forced air cooling ensures a central flow of cool air, which increases the lifespan and efficiency of the compressor. Thanks to the direct drive and oil-free operation, the silent compressors produce hundreds of hours of clean air without requiring maintenance. The silent compressors are also equipped with a free start-up mode up to 1.2 bar, which prevents a high start-up peak.

Technical specifications:

• power = 0.56kW
• voltage = 230V
• max. tank pressure = 11 bar
• set shut-off pressure = 8 bar
• start-up pressure = 6 bar
• suction volume = 140L/min
• air output = 112L/min
• tank volume = 6L
• speed = 1430rpm
• duty cycle = 30%
• noise level = 76dB(@ 1m)
• molded plug with 1.4m 3x1.0mm² cable
• connection = Euroline quick coupling internal
