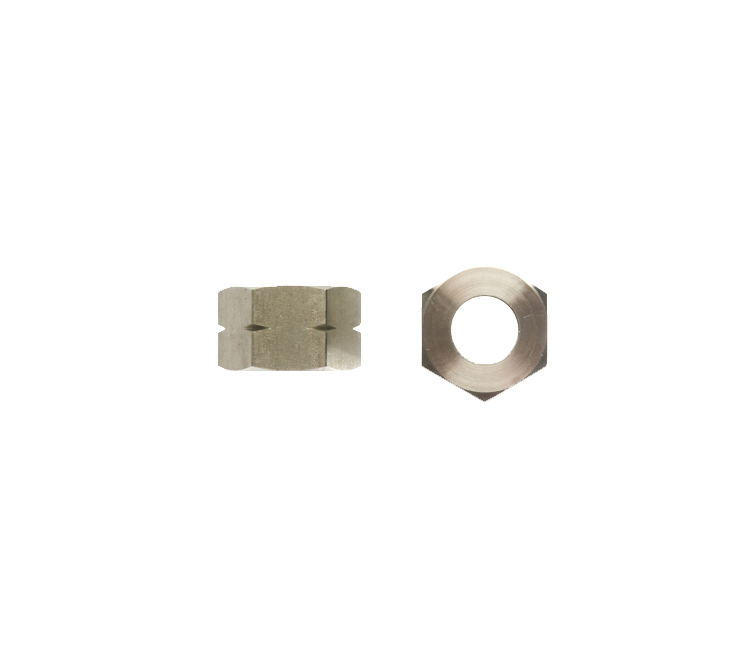

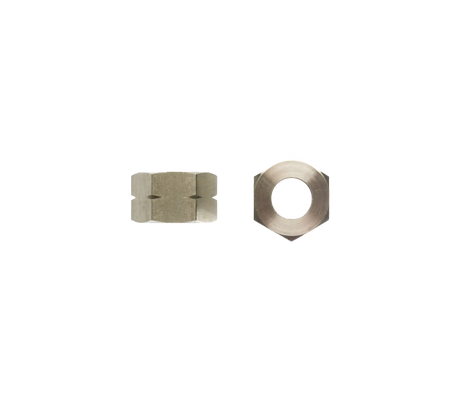

Stainless steel nut calibration gas M19x1.5 l 18mm DIN14
Regular price
€25,56
| Article number | 916190 |
| Product name | Stainless steel cable gland M19x1.5 l 18 mm DIN 14 |
| Kind | cylinder connections DIN (German) stainless steel |
| Type | 0 |
| Description | This gland is made according to DIN 477/14 and is usually used for calibration gases. An M19x1.5 thread is a metric thread with a pitch of 1.5 mm per thread. The stainless steel 303 cable glands are mainly used in a chemically aggressive environment. Stainless steel unions are used on stainless steel/stainless steel hoses or on stainless steel pressure reducing valves because this looks neater. For other situations, the brass gland (916154) is normally used. |
| Weight | 54 grams |
| Height | SW 27mm |
| Length | 18mm |
| Width | SW 27mm |
| Remark | The M19x1.5 l cylinder connection is a connection according to the German standard. In the Netherlands, the M19x1.5 l connection according to NEN 3268 is used with a 40 mm long nut. (916148 brass and 916180 for stainless steel) |
