Reducing valve K10 carbon dioxide 0-10 bar
Regular price
€74,94
| Article number | 916923 |

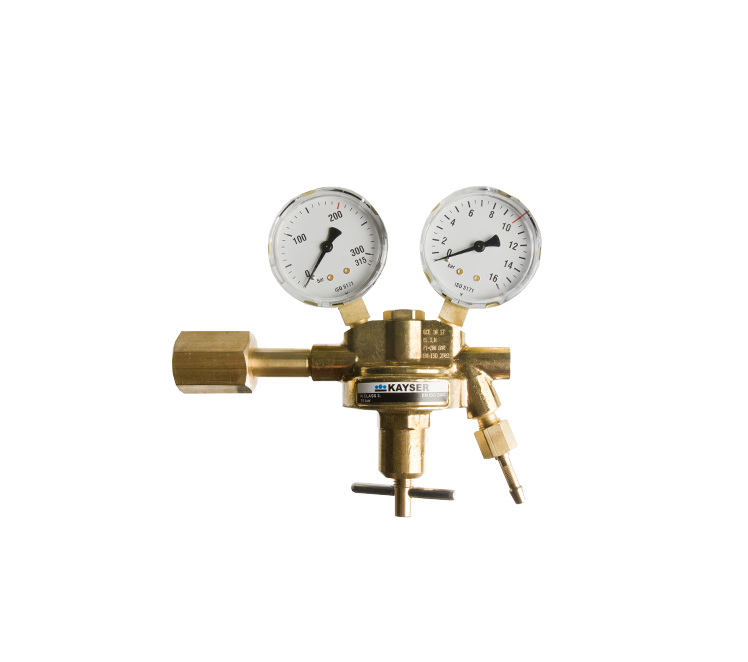

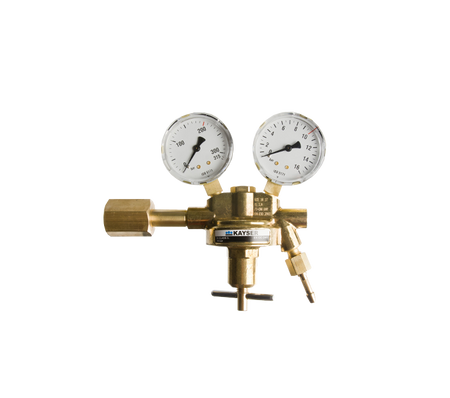

| Product name | Carbon dioxide reduction valve Kayser 0-10 bar |
| Kind | Pressure reducing valve K10 |
| Type | 0 |
| Description | You can use this reducing valve to reduce the pressure of a carbon dioxide cylinder (57.3 bar at 20 degrees) to a working pressure adjustable between 0 and 10 bar. The primary connection is 21.8 R internal (for RU 1 cylinder). The secondary connection is 1/4"R external with a hose tail for a 6 mm hose (EN 560). The pressure gauges around 63 mm are class 2.5. The valve is not equipped with a side valve. The blow-off safety is set slightly above 10 bar |
| Weight | 1472 grams |
| Height | 190mm |
| Length | 180mm |
| Width | 63mm |
| Remark | A pressure reducing valve with liter pressure gauge is used for welding with CO2. See art. No. 917003. If a lot of carbon dioxide is consumed for a longer period of time, the pressure reducing valve may freeze. If this is the case, place a heating device between the cylinder and the pressure reducing valve. Other cylinder connections are used abroad. These are available on request. |
