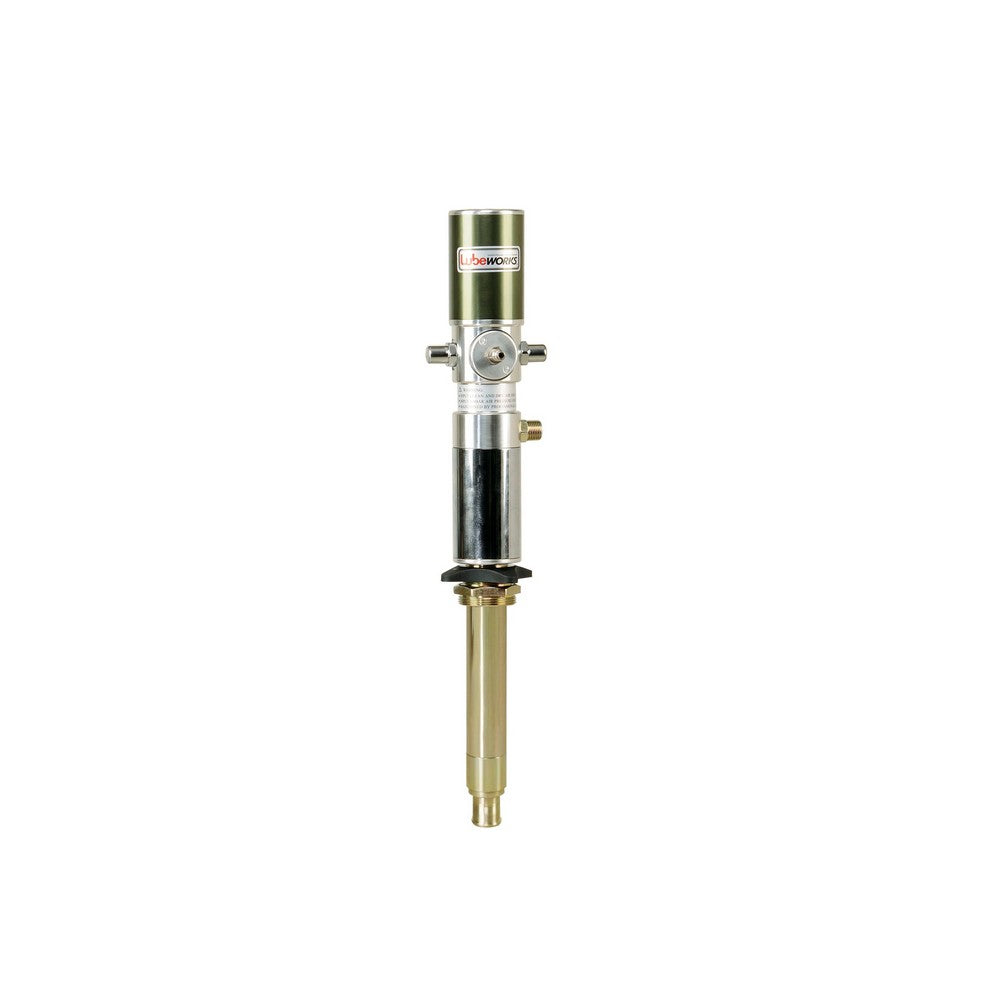

Pneumatic drum pump 1:1 270mm

Pneumatic oil drum pump

The pump is suitable for liquids such as engine oil, synthetic oil, hydraulic oil, transmission oil, automatic transmission fluid and oil up to 120 SAE.

- suitable for barrels of 50 - 60kg
- ratio = 1:1
- air inlet pressure = 5 - 8 bar
- max. liquid pressure = 8 bar
- largest diameter = 63mm
- air consumption at 8 bar = 100 L/min
- max. free flow = 18 L/min
- air inlet connection = 1/4'' quick coupling 1/4'' NPT internal
- oil outlet connection = 1/2''
