MIG MAG welding machine synergistic 350A

MIG/MAG 350A welding inverter / synergistic inverter / welding device / welding machine

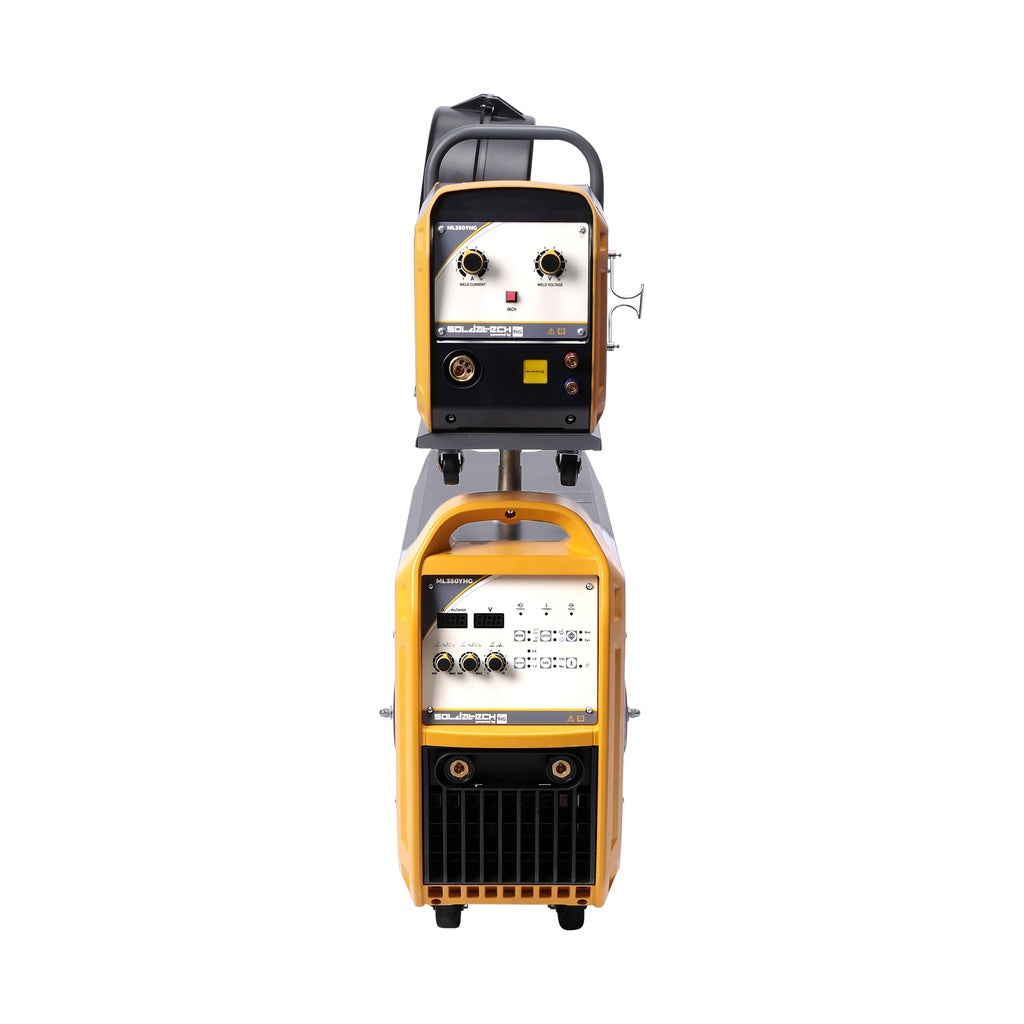

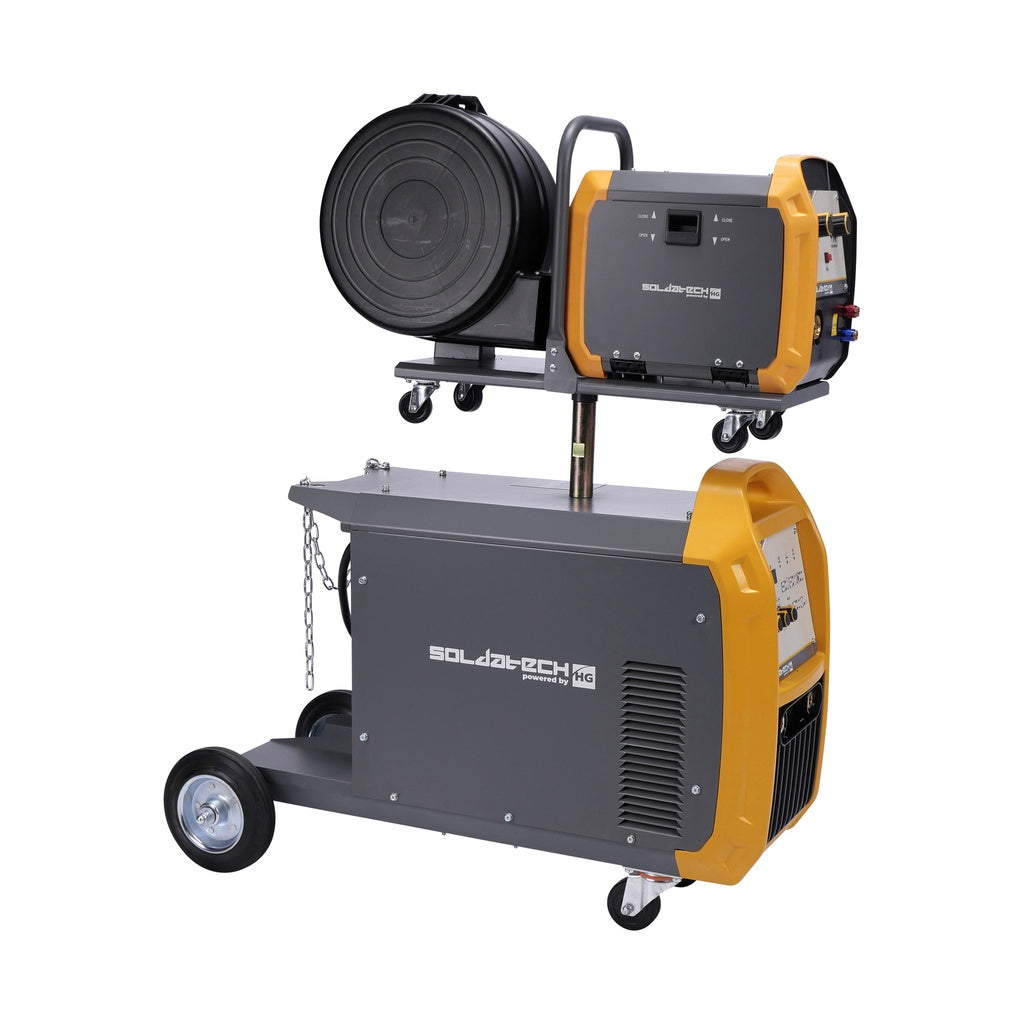

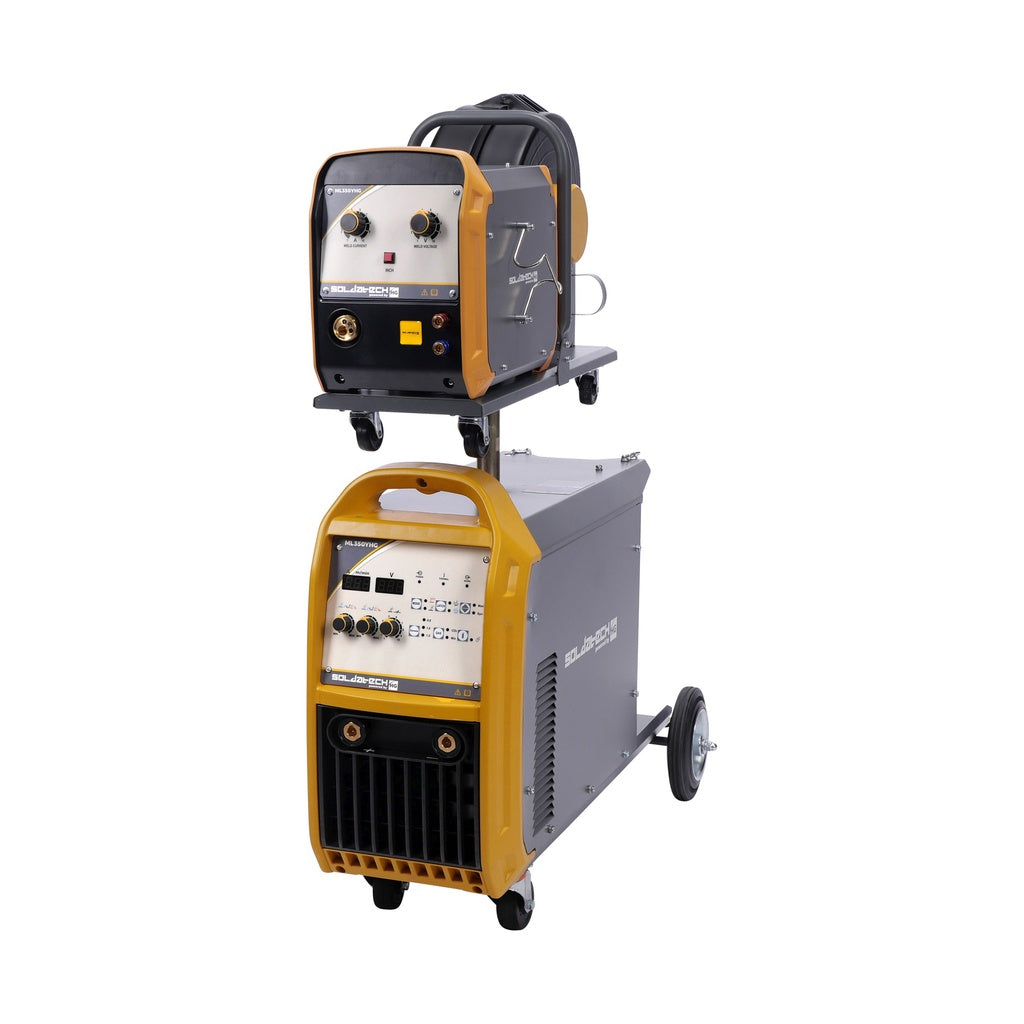

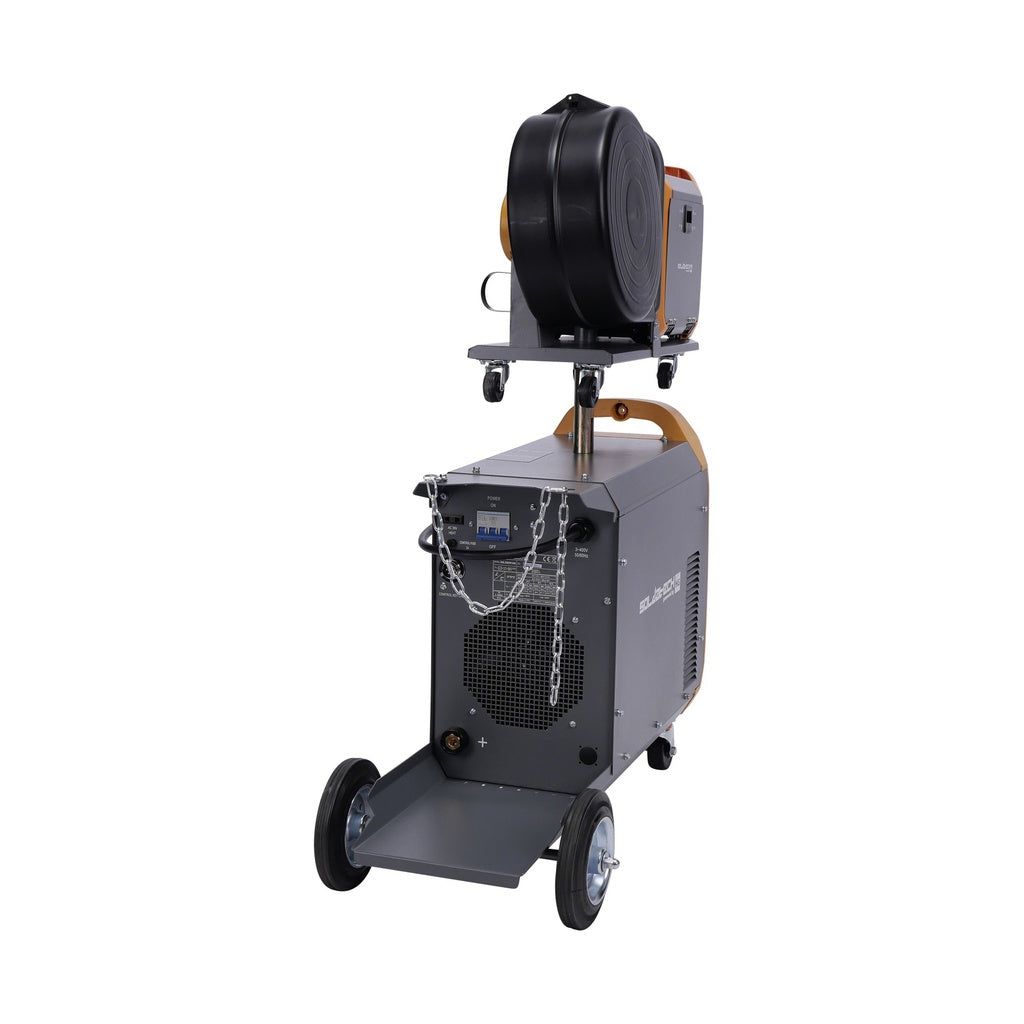

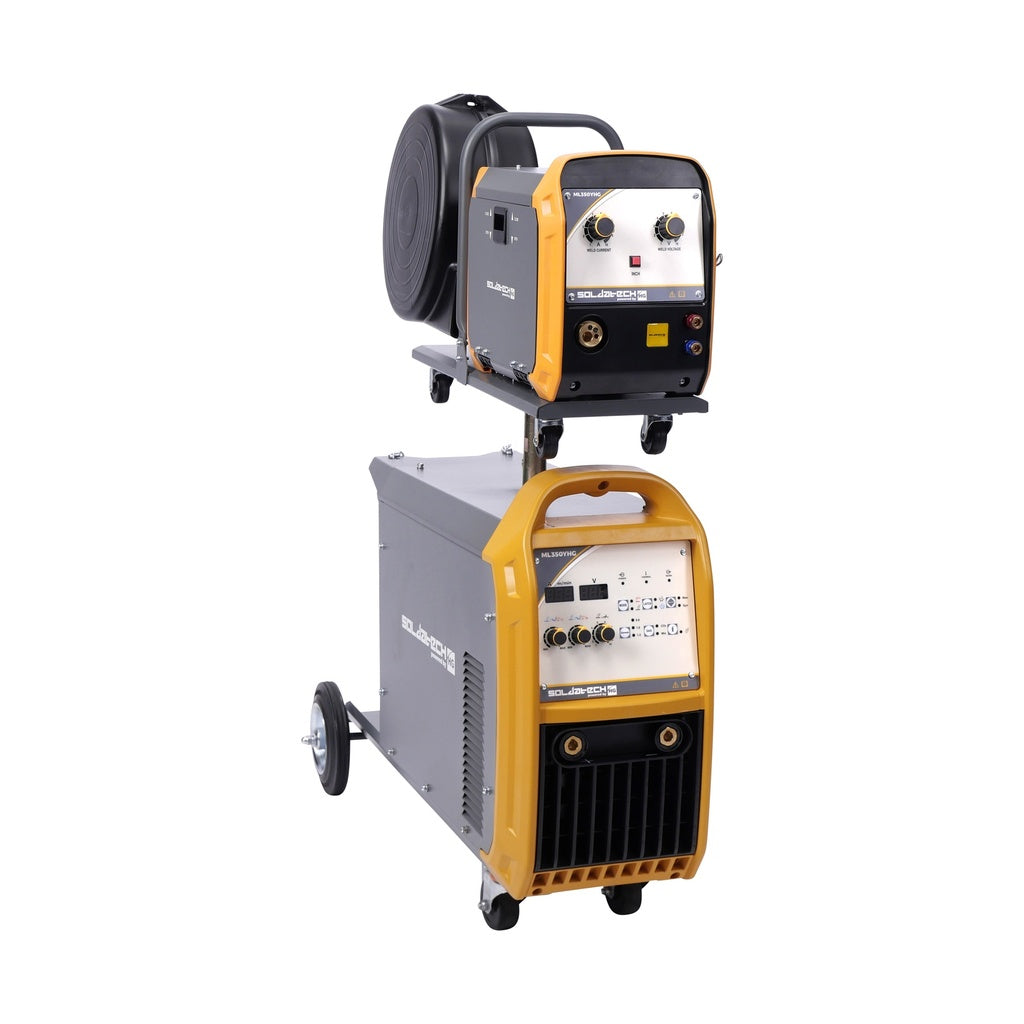

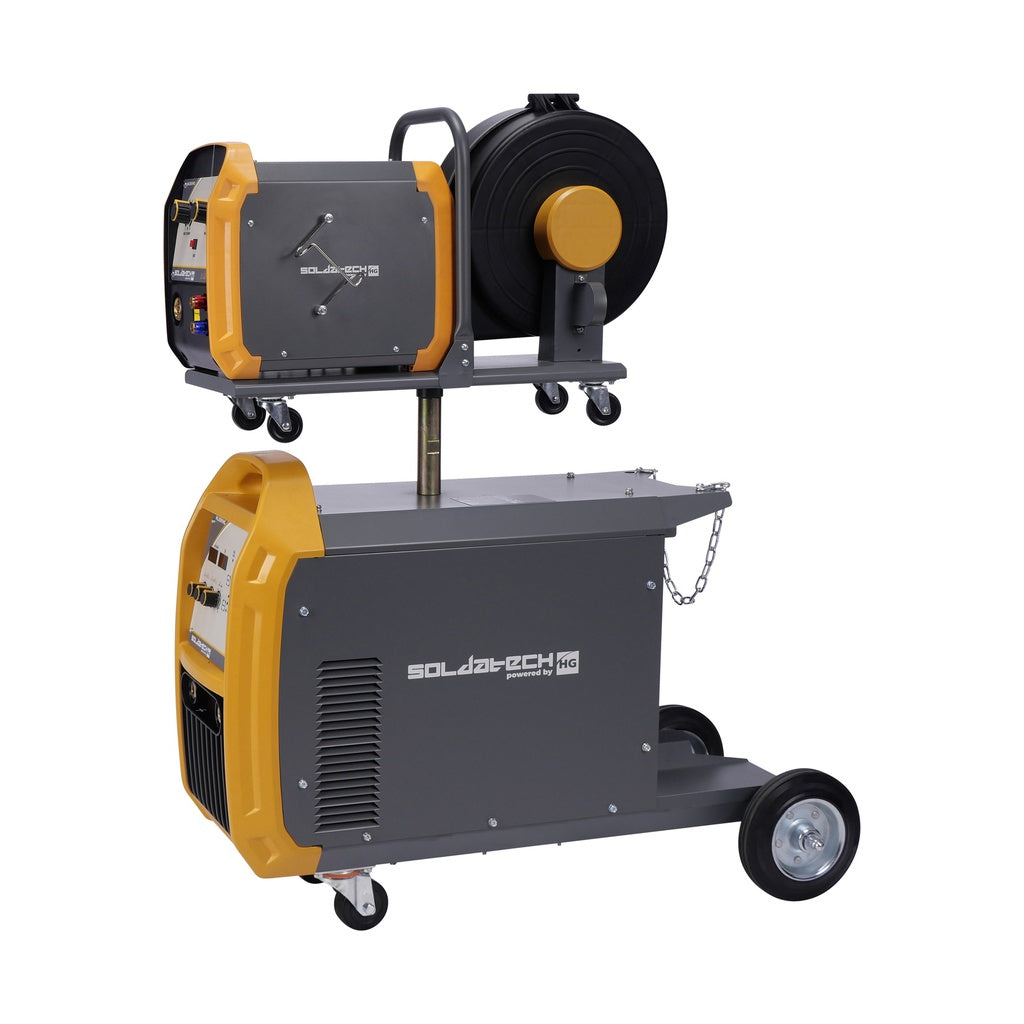

This Soldatech powered by HG MIG/MAG welding machine is equipped as standard with a carrying platform to attach the gas bottle. This machine makes it possible to carry out various welding processes including MIG welding and also electrode welding with ease.

The modern IGBT inverter technology ensures that the ML350YHG delivers sustainable performance with more power and a very high duty cycle. The ML350YHG is also equipped as standard with thermal safety, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

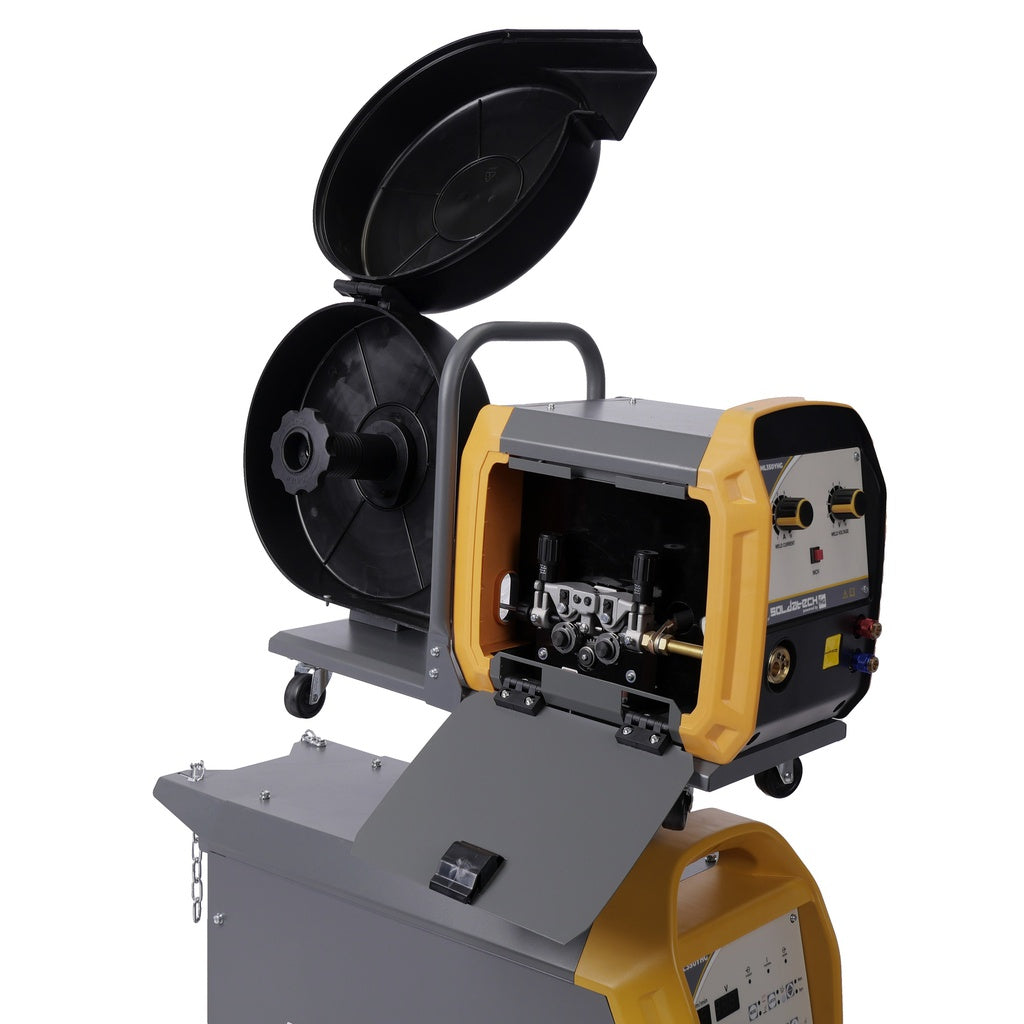

Furthermore, the mobile wire feed unit is equipped with a control panel on which, among other things, welding voltage and amperage can easily be adjusted. The power source is also equipped with pre-programmed synergistic programs for welding various materials.

The hot-start/anti-stick function quickly increases the welding current, so that the electrode does not stick to the workpiece during ARC welding.

Ideal for welding stainless steel, carbon steel, low alloy steel and aluminum (without pulse).

Every ML350YHG comes standard with:

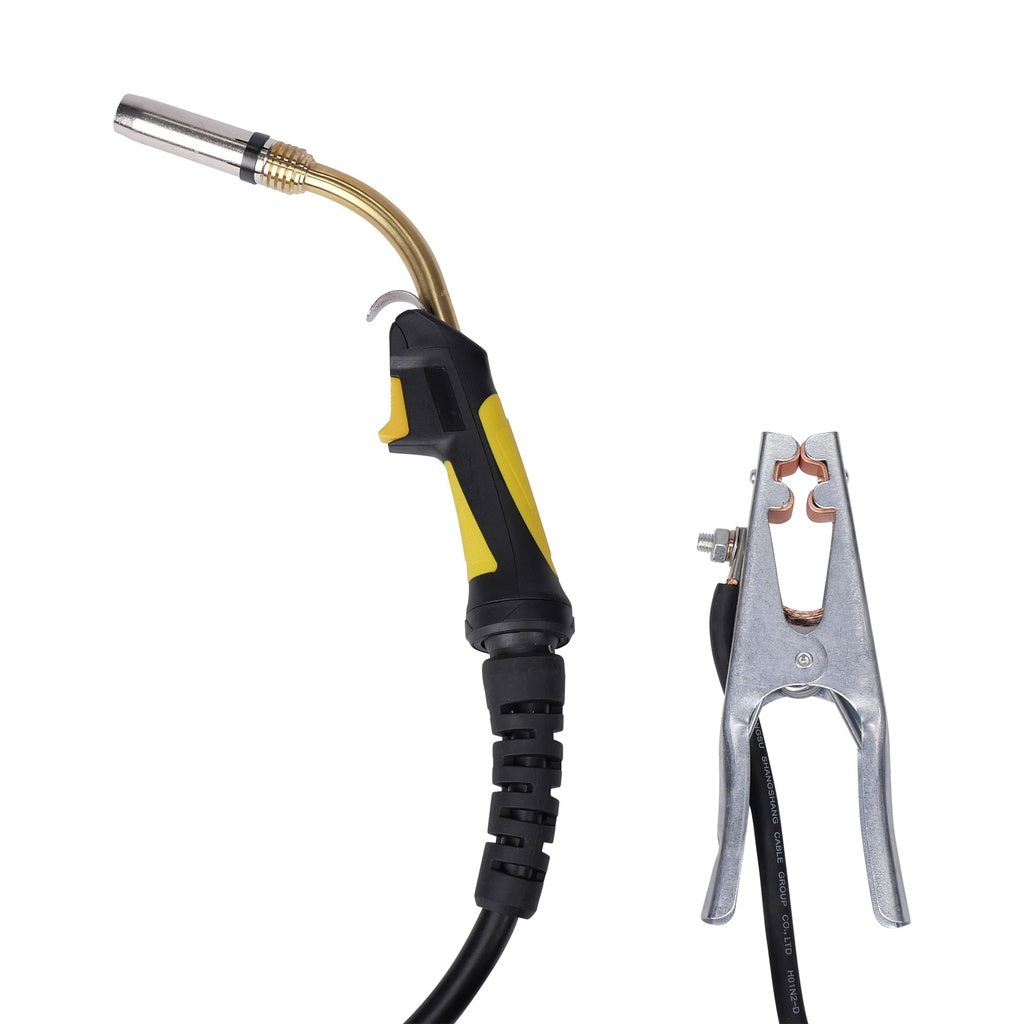

• Soldatech MLT36M4 MIG torch with euro connector and 4m cable
• Workpiece clamp with 3m 35mm² cable
• European Dinse couplings 13mm
• Gas pipe including quick coupling 7m

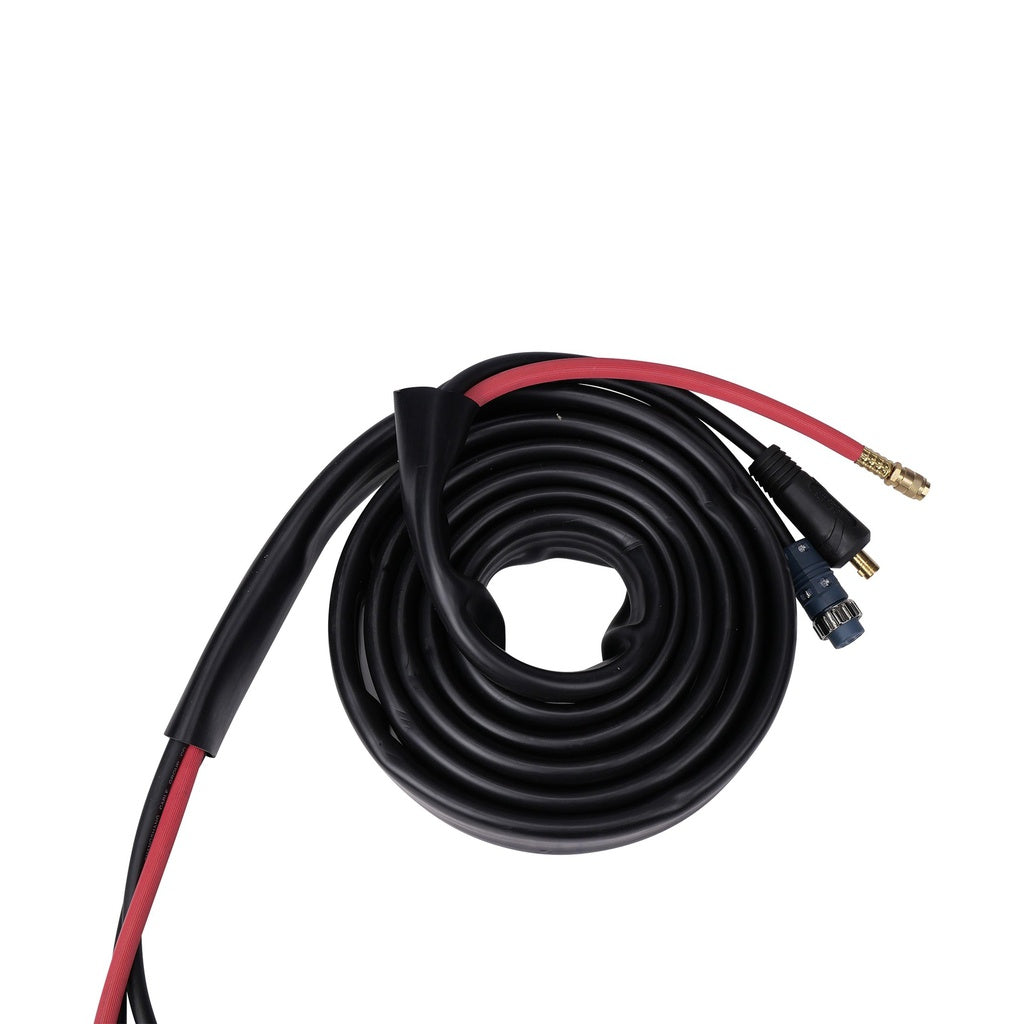

• Wire feedthrough of 5m between cable package
• 5-pin 32A plug with 3.5m 4x4mm² cable
• 4x wire drive roller: 2x 0.8 + 1.0 and 2x 1.2 + 1.6

Technical specifications:

• voltage = 400V - 3 phase
• frequency = 50/60Hz
• fuse = 32A B-kar
• input power = 16.8kVA
• start-up voltage = 73V
• duty cycle (at 20 degrees ambient temperature) =

  100% - 350A


• duty cycle (at 40 degrees ambient temperature) = 60% - 350A


• welding current range MIG/MAG = 40 - 350A
•

  welding current range MMA = 40 - 350A
• weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6
• protection class = IP21S
• dimensions = 1000 x 420 x 1200mm
• weight = 69kg
