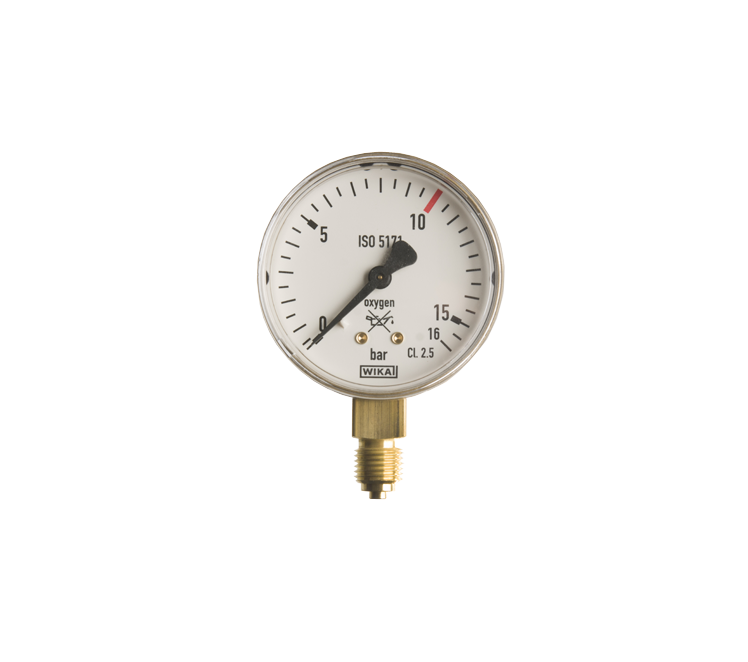

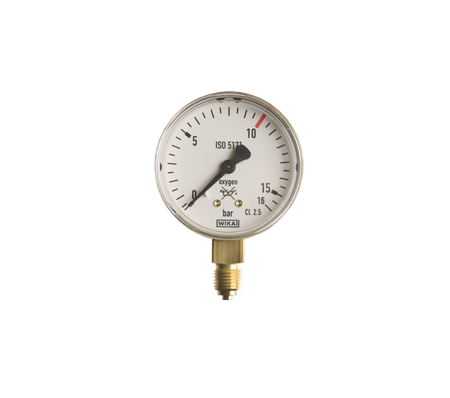

Oxygen manometer 0-16 bar 63mm
Regular price
€10,43
| Article number | 6303 |
| Product name | Oxygen manometer 0-16 bar |
| Kind | Bottom connection - 63mm |
| Type | pressure indication oxygen |
| Description | This manometer with a case diameter of 63 mm is used to read the working pressure of an oxygen reducing valve. The manometer is equipped with a connection nipple G1/4" at the bottom in accordance with DIN 16288. This manometer is manufactured in accordance with EN 562. It is a class 2.5 manometer. |
| Weight | 139 grams |
| Height | 29mm |
| Length | 87mm |
| Width | 63mm |
| Remark | The manometer is best mounted with an aluminum sealing ring (6500) or using fiber sealing rings (6501 and 6502). This manometer should NOT be mounted with Teflon tape. This manometer is oil and grease free. Oil and grease containing oxygen can ignite at high pressure. |
