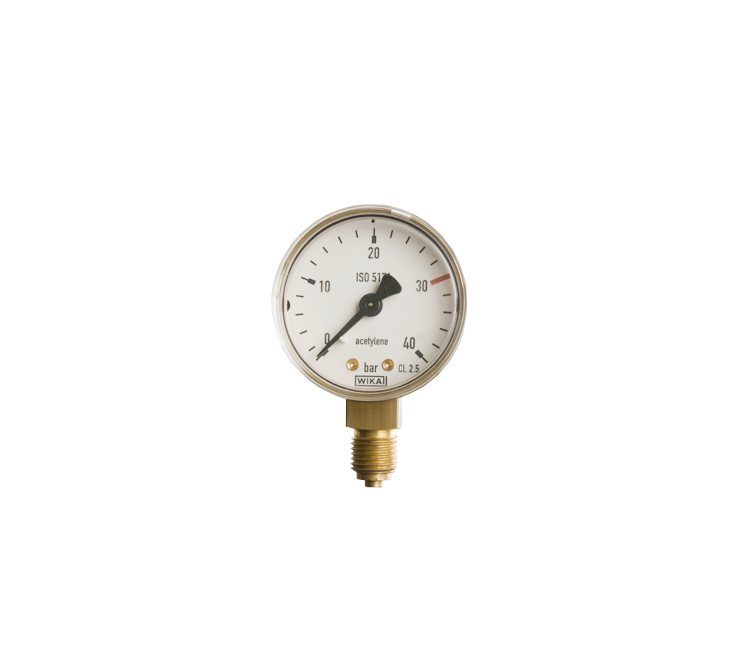

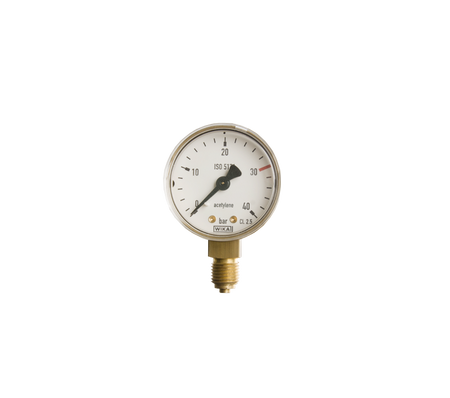

Manometer acetylene 0-40 bar 50mm
Regular price
€15,95
| Article number | 6330 |
| Product name | Acetylene manometer 0-40 bar 50 mm |
| Kind | Bottom connection - 50mm |
| Type | pressure indication acetylene |
| Description | This manometer with a case diameter of 50 mm is used to read the cylinder pressure of an acetylene cylinder. The manometer is equipped with a connection nipple G1/4" at the bottom in accordance with DIN 16288. This manometer is manufactured in accordance with EN 562. It is a class 2.5 manometer. |
| Weight | 102 grams |
| Height | 29mm |
| Length | 72mm |
| Width | 50mm |
| Remark | The manometer is best mounted with an aluminum sealing ring (6500) or using fiber sealing rings (6501 and 6502). This manometer should NOT be mounted with Teflon tape. |
