Air floor jack 80T - 50T

This series of Mammuth pneumatic hydraulic garage jacks are ideal for intensive industrial use. With these air floor jacks, safely lifting trucks, buses, trailers, trucks and machines, among others, becomes a simple job.

Thanks to its well-thought-out design, this air floor jack has the following useful features:

• Dead man's control: jack switches off immediately when the joystick is released
• optimal stability due to the wide base
• hard chrome cylinders, both internally and externally
• cylinders are equipped with seal rings to prevent oil leakage
• Overpressure valve ensures safety against overload
• reducing valve for delay during lowering
• large sturdy rubber wheels

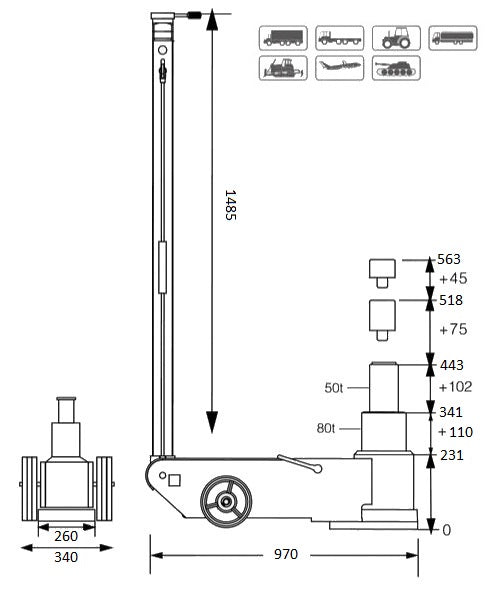

Specifications:

• capacity = 80T / 50T - 2 stages
• minimum lifting height = 231mm
• maximum lifting height without attachments = 445mm
• maximum lifting height with attachments = 565mm
• stage 1 - 80T = 110mm, height from floor = 341mm
• stage 2 - 50T = 102mm, height from floor = 445mm
• attachments = 75mm and 45mm
• average air consumption = 300L/min
• working pressure = 9 - 12 bar
• coupling = euro 1/4'' thread
