Lift table quad and trike 675kg hydraulic and pneumatic
Regular price
€725,00
Voorraad per locatieLaatst gecontroleerd: 30-09-2026 09:00
| Locatie | Voorraad | Afhalen/verzenden |
|---|---|---|
| Weldingshop winkel Beverwijk | 2 stuks | Direct afhalen en verzenden |
| Centraal magazijn Voor verzending | 138 stuks | Voor 14:00 besteld, dezelfde dag verzonden |
Quad lift / quad lifting table / motorcycle lift / motorcycle lift / ATV lift

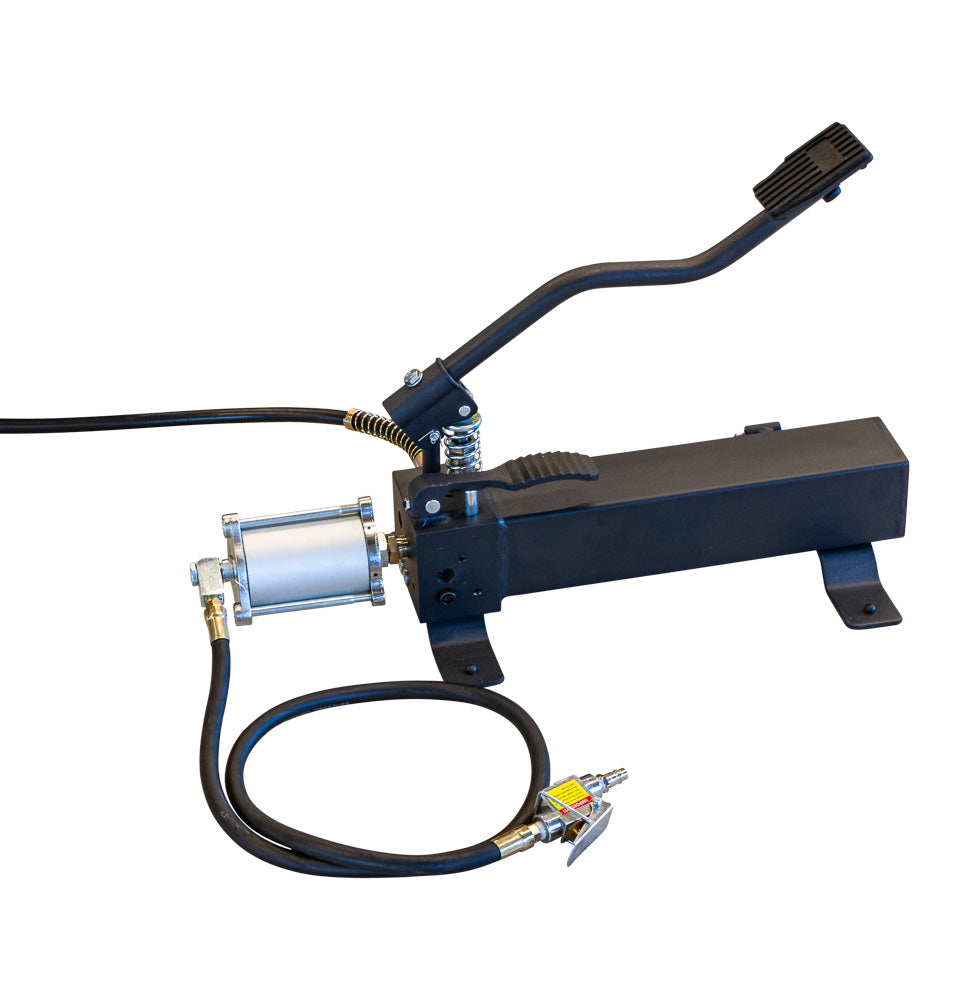

This quad lift is suitable for larger and wider engines such as quads, trikes and riding mowers. The lift can be operated with either a foot pump or an air pump. The scissor lift model ensures a robust construction and extra stability. The lock works by means of teeth that can be unlocked using a lever. The lift is also equipped with a removable plate.
Specifications:
- capacity = 675kg
- min. height = 185mm
- max. lifting height = 825mm
- platform size = 1995 x 1190mm
- ramp size = 650 x 1190mm
- required air pressure = 7 - 8 bar
Dimensions of the packaging box = 205 x 124.5 x 31cm
Additional product sizes and packaging information.
- Product weight_____: 174.0
- Product length______: 1995.0 Product width_____
- : 1190.0 Product
- height______: 825.0
- Total weight______: 272.5
- Package length___: 2070.0
- Package width__: 1260.0
- Package height___: 545.0
Aanvullende informatie
Materiaal
Staal
Hefcapaciteit
675 kg
Min. hoogte
185 mm
Max. hoogte
825 mm
Platformlengte
1995 mm
Platformbreedte
1190 mm
Oprijlengte
650 mm
Lifting time
50 sec
Air connection
1/4 NPT
Working air pressure
8 bar
Air consumption
120 L/min
Oliecapaciteit
1.4L
Olietype
OHCH15V
Product
Afmetingen
1995 mm x 1190 mm x 185 mm
Gewicht
208 kg
Verpakking
Verpakkingsafmetingen
2070 mm x 1260 mm x 545 mm
Verpakkingsgewicht
272,5 kg
