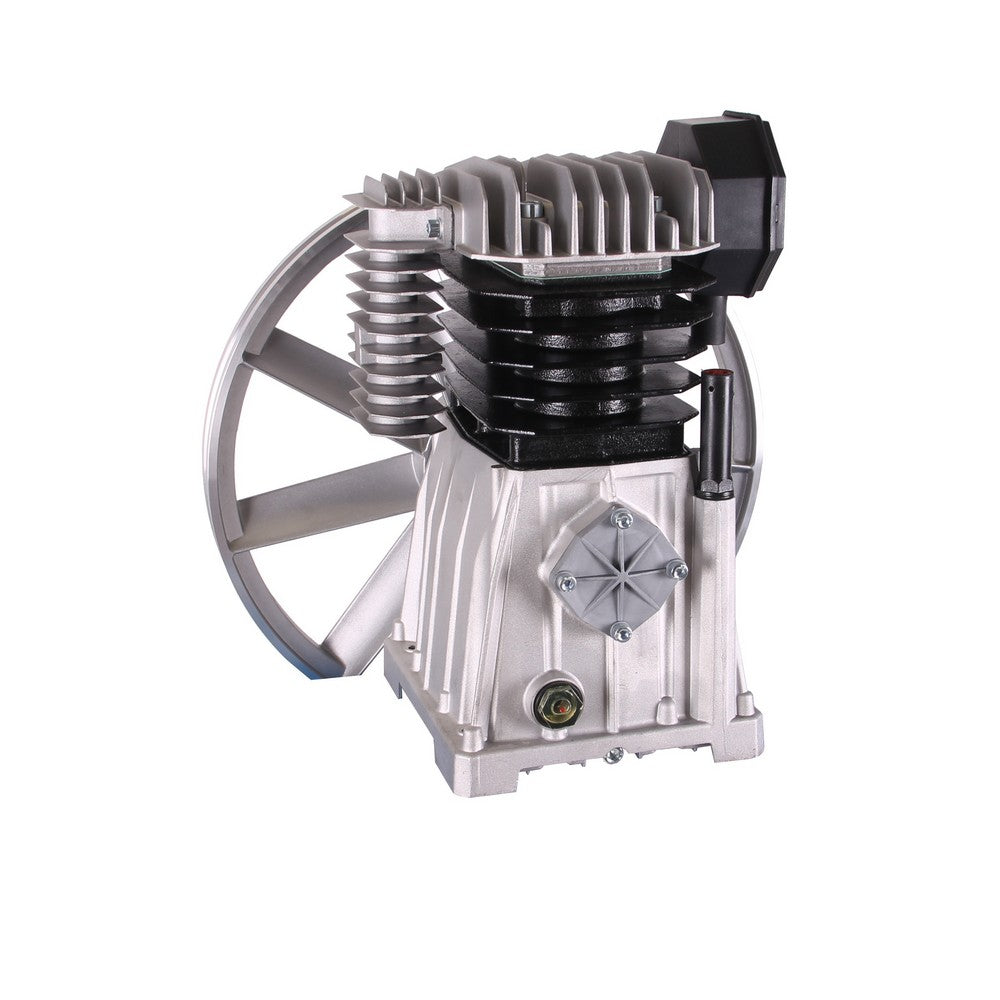

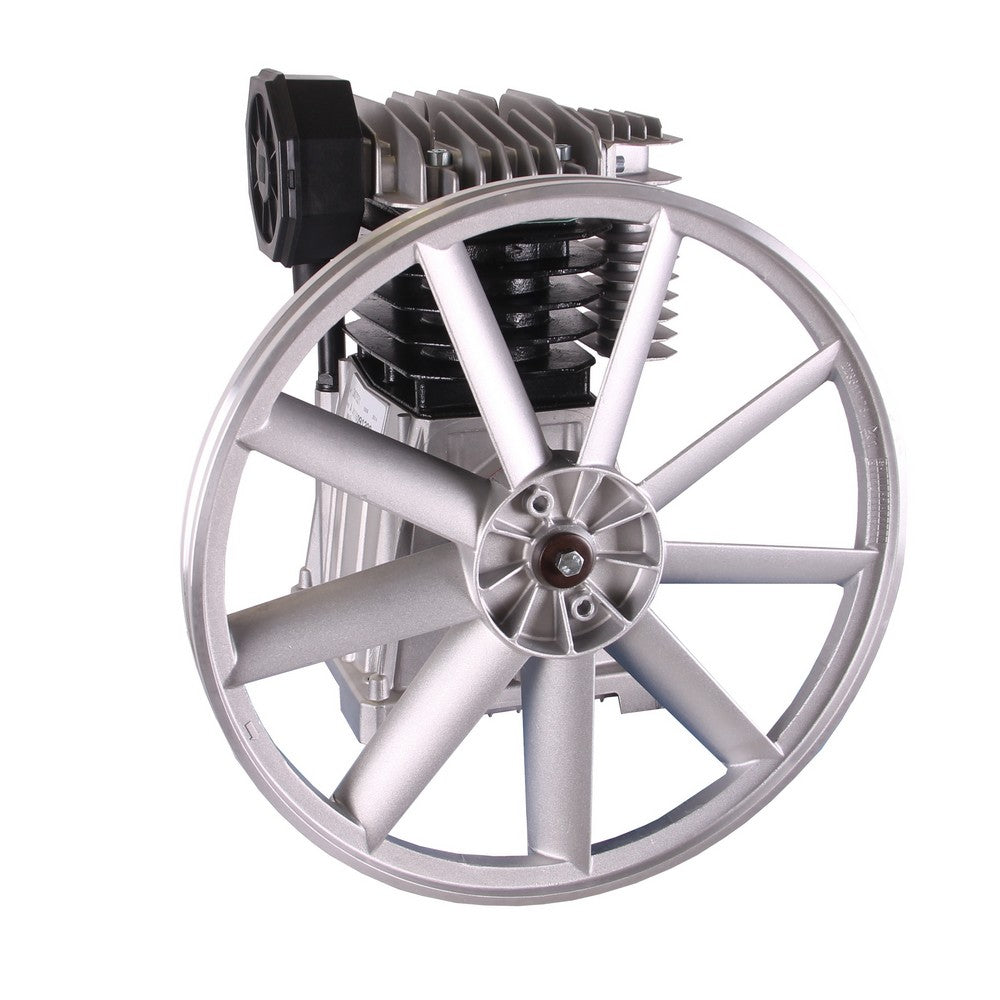

Compressor pump for CP30A10

Compressor pump

Zion-Air CP compressor pumps are of excellent quality.
Each CP pump is valve controlled and equipped with a cast iron cylinder wall.
Air filter / gasket and valve sets are available from stock.
Pump is supplied including pulley.

- pump for CP30A10 compressor
- number of cylinders = 2
- construction method pump = line
- air pressure = 10bar
- air output = 486 L/min
- speed = 1350rpm

- pulley diameter = 391mm

- center to center left to right = 155mm

- center to center front to back = 140mm

• Product weight_____: 13.1
• Product length______: 370.0
• Product width_____: 280.0
• Product height______: 350.0
• Total weight______: 14.5
• Package length___: 390.0
• Packaging width__: 320.0
• Packaging height____: 430.0
