Cylinder 20 tons stroke 50mm
Regular price
€80,00
B.08.03.03

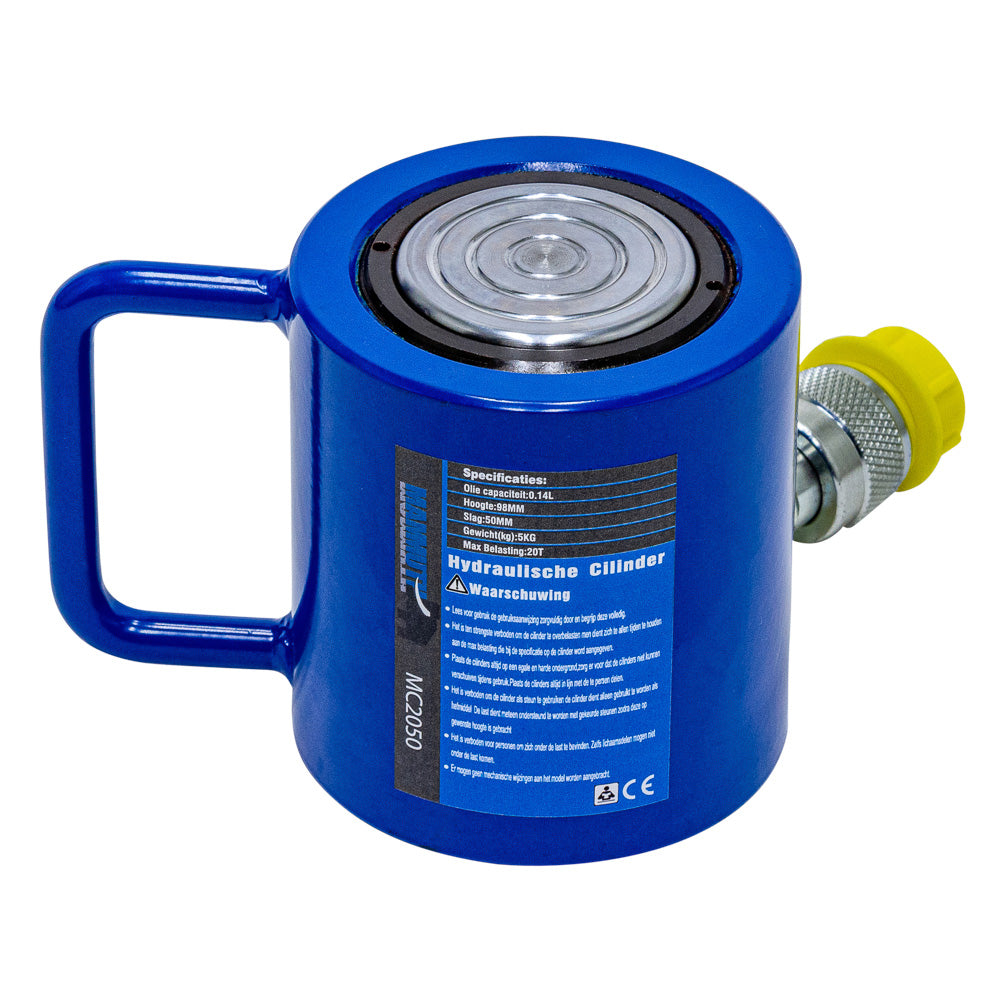

Hydraulic cylinder
The data is from a retracted cylinder. If the stroke needs to be higher, ZFL cylinders are recommended.
The surface of the main shaft is finished with a chrome plate.
The plunger retracts automatically.
- tonnage = 20 tons
- stroke = 50mm
- effective cylinder surface = 22cm^2
- oil capacity = 0.14 L
- height of product = 98mm
- extended height = 148mm
- outside diameter = 88mm
- support surface diameter = 65mm
- plunger diameter = 53mm
- oil input thread (ZG) = 3/8'' - 19
- height of the top cap = 2mm
- top cap is removable
- max. pressure = 700bar
Additional product sizes and packaging information.
- Product weight_____: 4.0
- Product length______: 160.0
- Product width_____: 90.0
- Product height______: 100.0
- Total weight______: 5.0
- Package length___: 240.0
- Packaging width__: 275.0
- Packaging height____: 225.0
