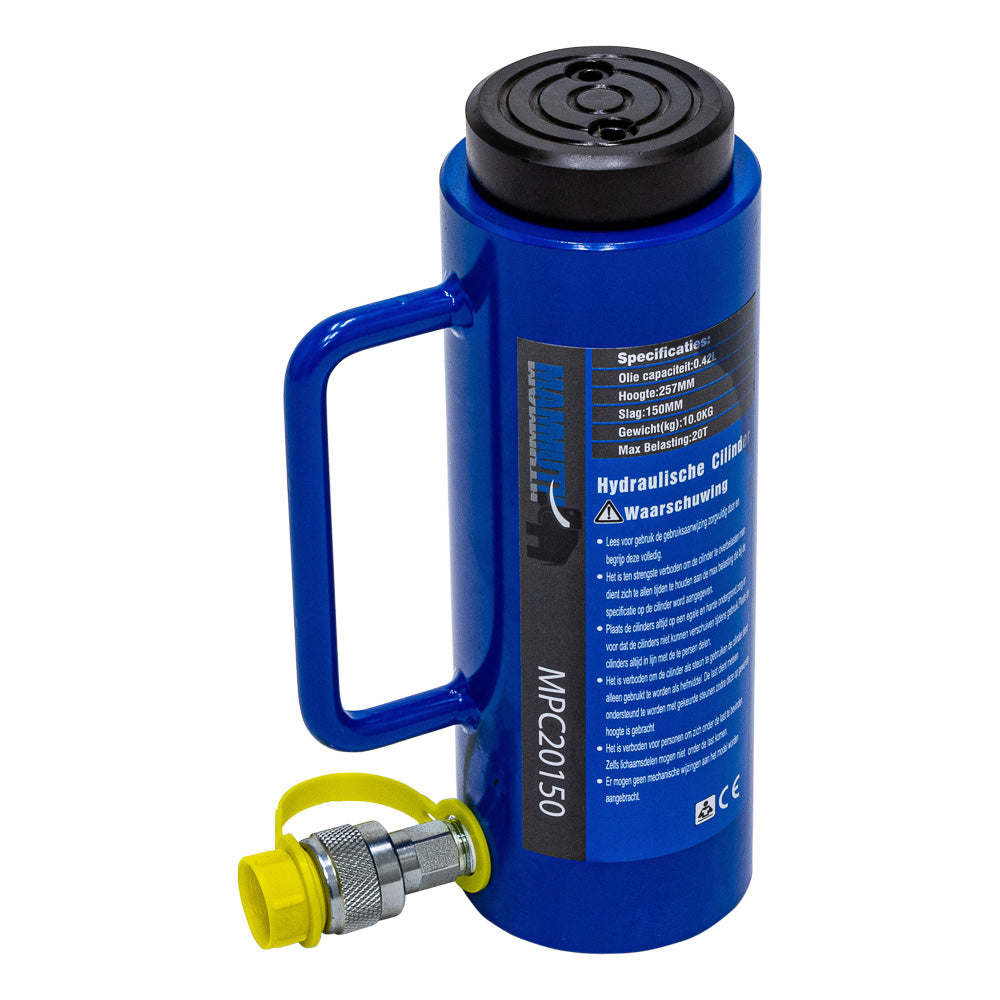

Cylinder 20 tons stroke 150mm

Hydraulic cylinder

Sturdy underlay to protect the axle when overloaded.
The surface of the main shaft is finished with a chrome plate.
The plunger retracts automatically.
Surface coating is resistant to corrosion.

• tonnage = 20 tons
• stroke = 150mm
• effective cylinder surface = 33.2cm^2
• oil capacity = 0.498 L
• height of product = 254mm
• extended height = 407mm
• outside diameter = 88mm
• support surface diameter = 65mm
• plunger diameter = 55mm
• oil input thread (ZG) = 3/8'' - 23
• height of the top cap = 21mm
• top cap is removable
• max. pressure = 700bar

• Product weight_____: 10.0
• Product length______: 330.0
• Product width_____: 300.0
• Product height______: 407.0
• Total weight______: 11.0
• Package length___: 390.0
• Packaging width__: 185.0
• Packaging height____: 195.0
