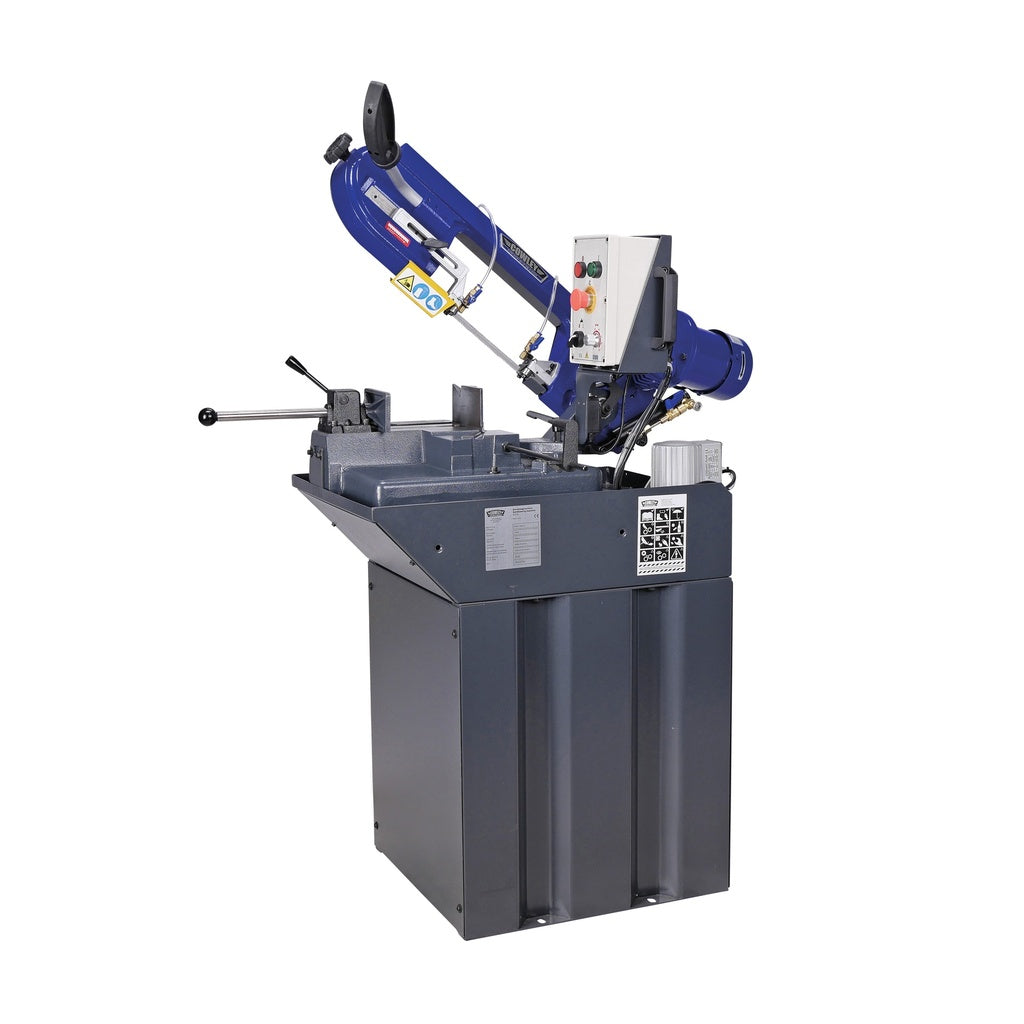

Band saw machine hydraulic 150mm 230V

band saw machine / metal band saw / metal saw / band saw / European type horizontal band saw The band saw machine BS135 from Cowley is supplied as standard with a base cabinet. This base cabinet can be dismantled, so the saw can also be used as a table model and mobile.

The band saw is equipped with a user-friendly low-voltage control panel including emergency switch, making it easy and safe to operate. In addition, it is equipped with an automatic hydraulic lowering cylinder, which makes it possible to adjust the lowering speed. This causes the saw to lower at a controlled constant speed during use.

Thanks to the adjustable five-bearing saw blade guide, this band saw has a high cutting precision.

The low-speed motor guarantees a long service life.

The saw speed is infinitely adjustable from 20-66 m/min, making the saw ideal for cutting steel, aluminum, stainless steel, Teflon, plastic and many more materials.

The built-in cooling system keeps the saw blade cooled and lubricated and flushes away any chips or cutting residue.

This model is equipped with a manually operated belt tensioning system, motor overload protection and a collection container for metal chips.

The band saw has an adjustable cutting angle of 0° - 60° and is equipped with an adjustable material stop for quick and correct cuts.

Furthermore, the band saw is equipped with a quick-release system that allows you to clamp the materials in and out very quickly.

This model comes with a small set of maintenance tools.

Characteristics:

• User-friendly control panel
• Automatic/hydraulic lowering speed
• Adjustable saw blade guide with 5 bearings
• Emergency stop
• Quick clamp system
• Bimetal saw blade
• Cast iron machine clamp
• Maintenance-free bearings
• Built-in cooling pump
• Adjustable material stop
• Adjustable cutting angle 0° - 60°

Technical specifications:

• Voltage = 230V/ 50Hz
• Power = 1.1kW
• Saw belt speed = 20-66 m/min
• Cutting speed = variable
• Dimensions = 950 x 530 x 1520 mm
• Weight = 105 kg

Saw blade dimensions:

• Saw blade length = 1735mm
• Saw blade width = 12.7mm
• Saw blade thickness = 0.9mm

Adjustable cutting angle from 0° to 60° using a quick locking lever and an automatic shut-off system.

Cutting range:

• 0° around 150 mm
• 0° square 150 x 150 mm
• 45° around 100 mm
• 45° rectangle 130 x 100 mm
• 60° around 60mm
• 60° square 60 x 60 mm
