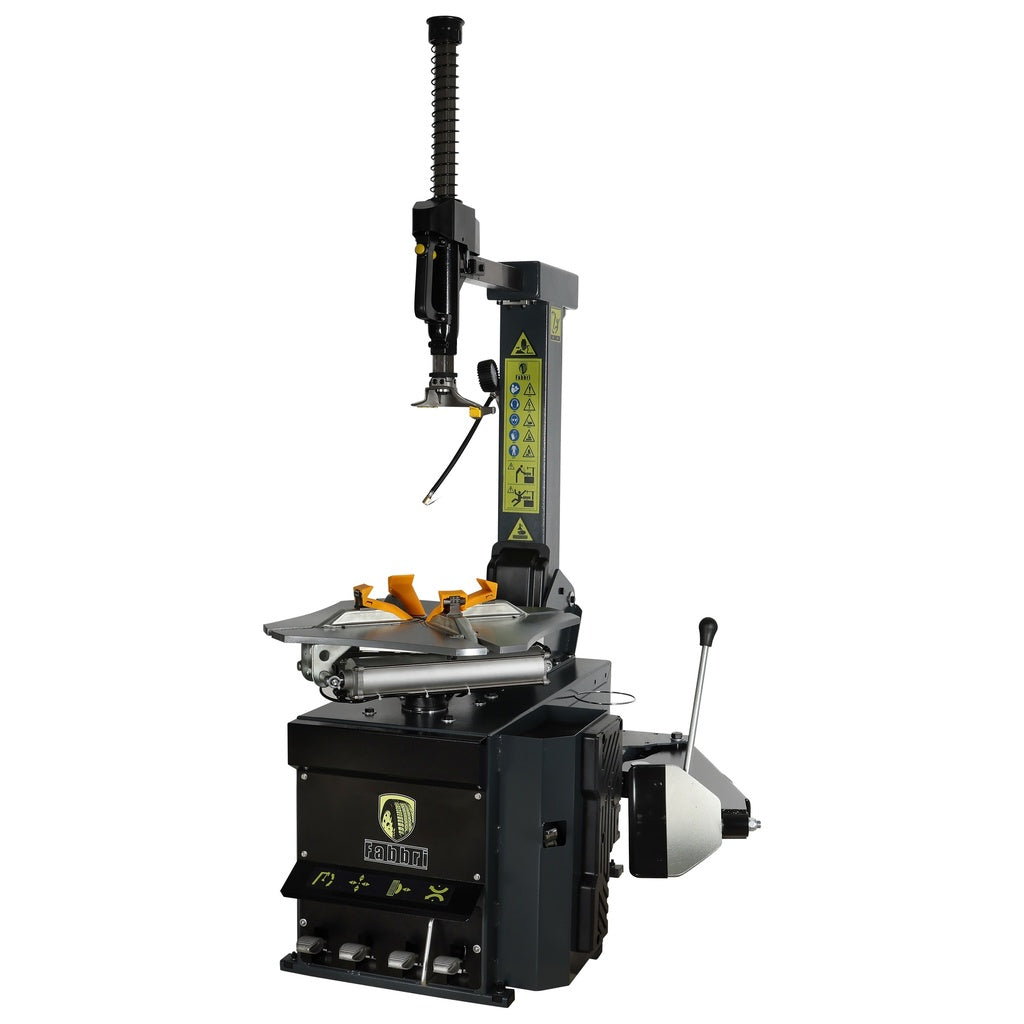

Tire demounting machine ZH650

Tire demounting device / tire demounting machine / tire demounting device

Trainsway is a progressive manufacturer with 30 years of experience in the production of tire equipment. Thanks to the excellent price/quality ratio, Trainsway tire equipment is known worldwide.

Fully automatic tire changer equipped with a tilting column for intensive use. Equipped with extra reinforced chassis with dual function for easy removal of low profile tires.

Technical specifications:

- engine power = 1.1Kw / 1.5Hp

- current = 230V - heel breaker force = 2500kg
- working pressure= 8-10 bar
- rim outside diameter = 10''-21''
- rim inner diameter = 12''-24''
- max. wheel diameter = 41'' (1040mm)
- wheel width = 14'' - (355mm)
- type = ZH650

All our Trainsway machines are supplied with a clear Dutch manual including certificate. The machines comply with the latest 2006/42/EC Machinery Directive standard.

Standard accessories supplied:
tire lever, oil lubricator,
accessories set for aluminum rims,
tire gauge, hose
