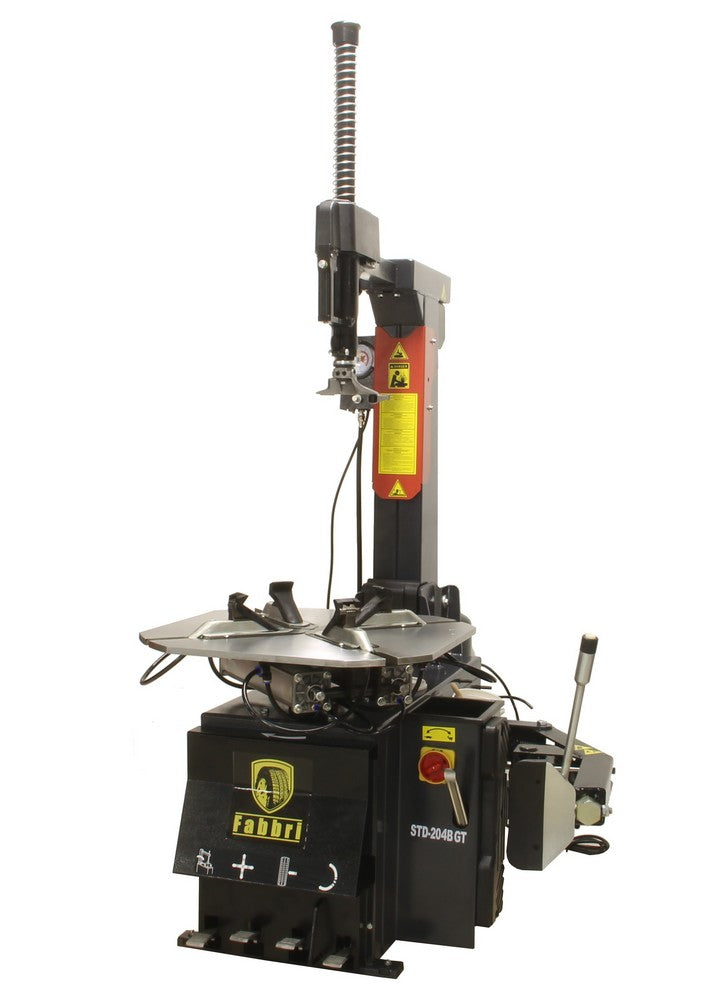

Tire mounting machine 400V double speed double column

Professional tire removal device

Fully automatic double speed tire changer is equipped with an extra sturdy tilting column for intensive use. The turntable can rotate at two speeds, ideal for mounting and dismounting very wide and stiff tires.

- clamping rim from outside = 12 - 28''
- clamping rim from the inside = 14 - 30''
- max. wheel diameter = 1200mm (47'')
- max. wheel width = 450mm (17'')
- heel breaker cylinder force at 10 bar = 2500kg
- working pressure = 10bar (145psi)
- max. tire filling pressure = 3.5 bar
- voltage = 400V

is supplied including:
tire lever, oil lubricator, accessory set for aluminum rims, tire gauge, hose

Supplied as standard without auxiliary arm
auxiliary arm HP1XL optional, see below for related products
