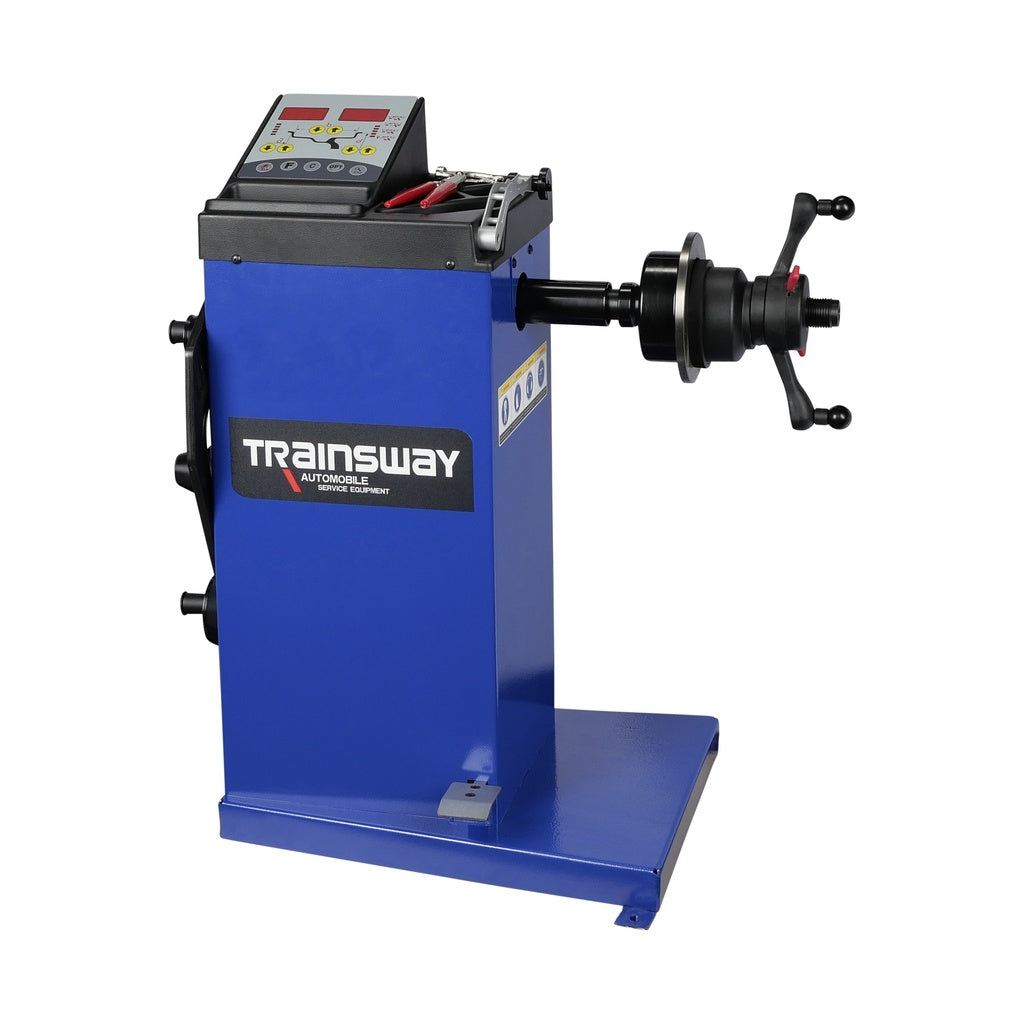

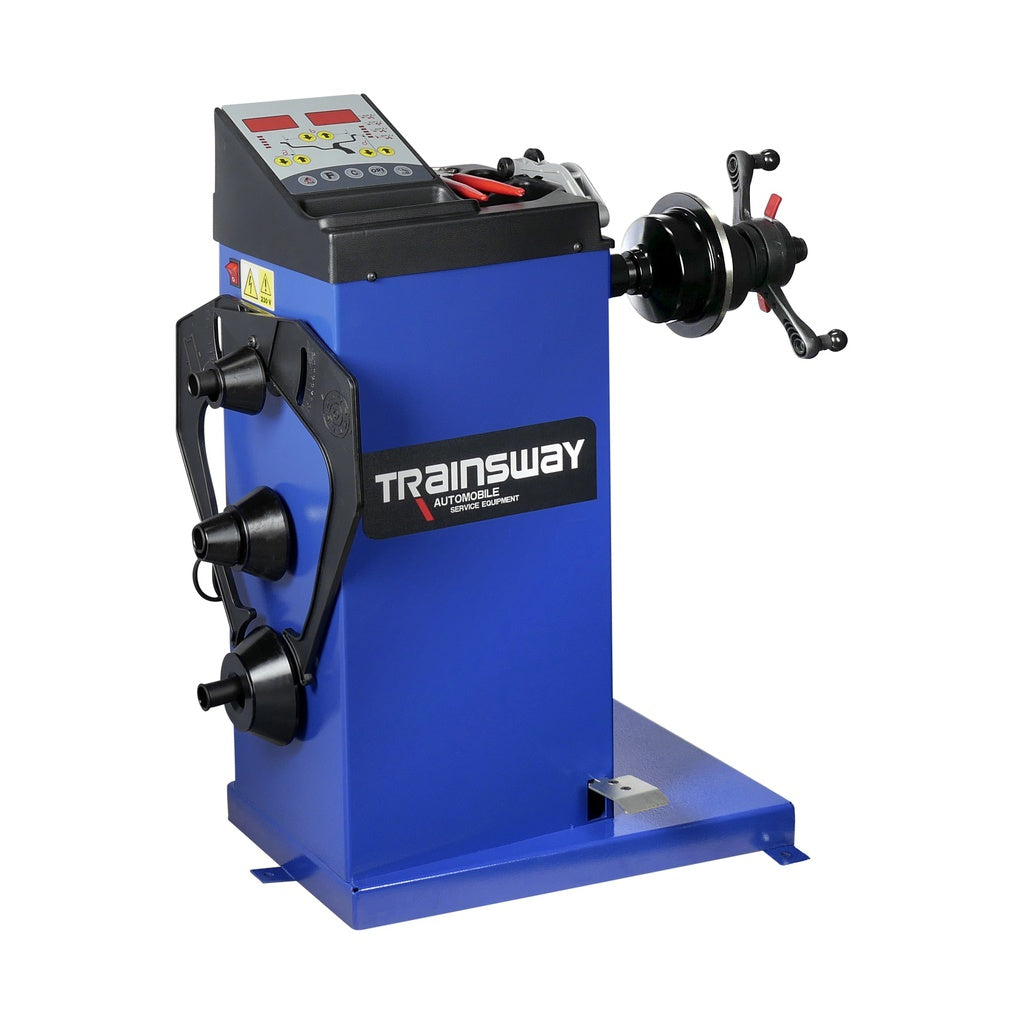

Tire balancing device / wheel balancing machine / tire balancing machine manually operated

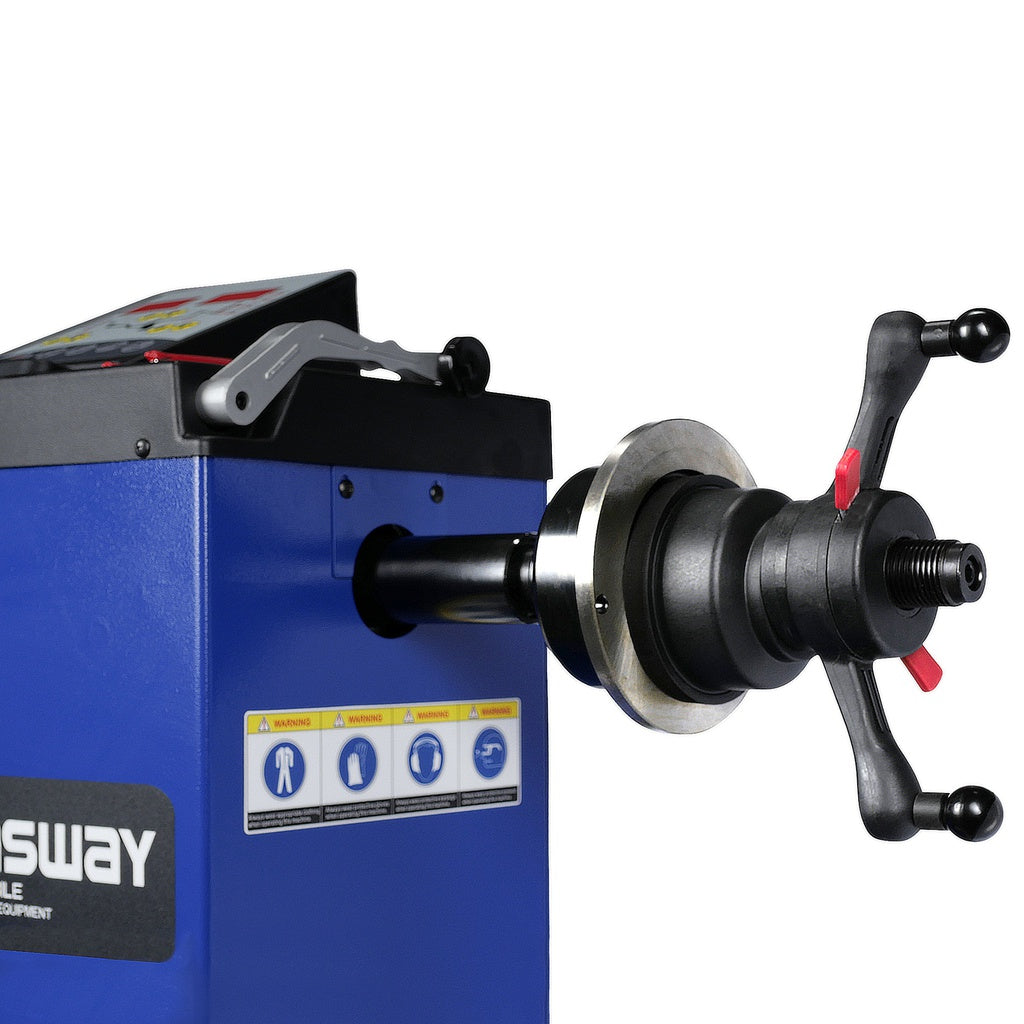

This Trainsway balancing machine without motor is manually operated and is equipped with a foot pedal and special balancing clamp.
Technical specifications:
- max. wheel weight = 40kg
- current = 230V
- balance accuracy = 1g
- balance speed = 70 - 200rpm
- rim diameter = 10'' - 24''
- rim width = 1.5'' - 20''
Max - min cone size:
- 65mm - 45mm
- 80mm - 55mm
- 110m - 75mm
- 135mm - 95mm
All cones have an axle size of 36mm. Supplied as standard with: wheel plumbers, cone set, rim width meter, mounting clamp. Many accessories are available!
Additional product sizes and packaging information.
- Product weight_____: 55.0
- Product length______: 0.0
- Product width_____: 0.0
- Product height_____: 0.0
- Total weight______: 68.0
- Package length___: 560.0
- Package width__: 650.0
- Package height___: 1070.0
Aanvullende informatie
Power supply
230V
Wheel weight max.
40 kg
Wheel diameter max.
1000 mm
Rim diameter range
10" - 24" (254 - 610 mm)
Rim width range
1.5" - 20" (38 - 508 mm)
Balancing accuracy (car wheels)
1g
Balancing shaft
36 mm
Balancing time
7 sec.
Noise level
<70 dB
Cone size (max. - min.)
65mm - 45mm
Cone size (max. - min.)
80mm - 55mm
Cone size (max. - min.)
110m - 75mm
Cone size (max. - min.)
135mm - 95mm
Product
Gewicht
55 kg
Verpakking
Verpakkingsafmetingen
560 mm x 650 mm x 1070 mm
Verpakkingsgewicht
68 kg
