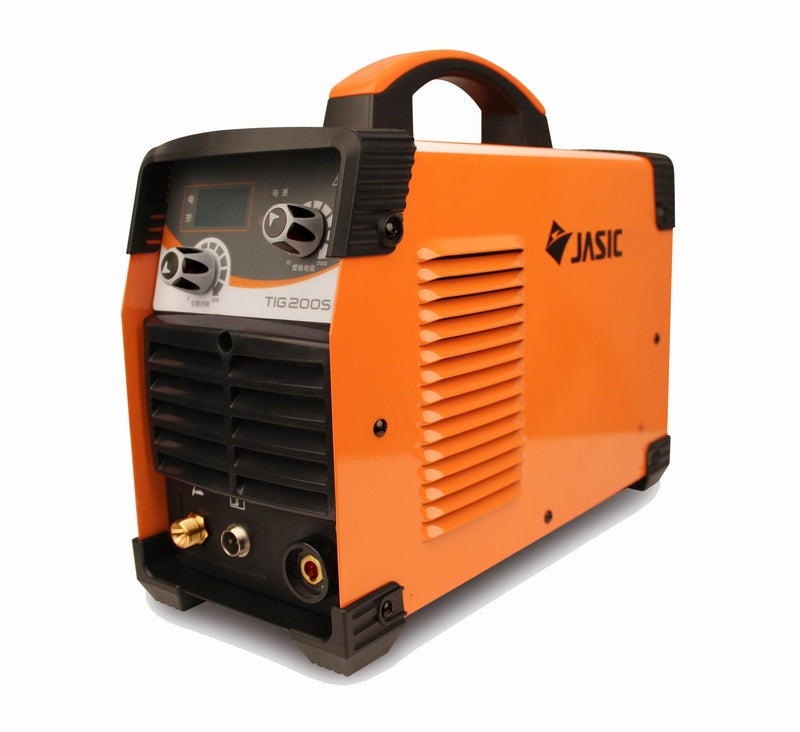

Jasic TIG200S 10-160A DC TIG Lasapparaat, Compact & Licht
Normaler Preis
€222,73
Omschrijving Jasic TIG200S (W120)
Features
Single DC TIG function
High frequency ignition
Post-flow function
Light and compact ,easy to carry and use
Economizes tungsten use with a stable output and high duty cycle
Accessories
Standaard:
1 pc of 4m SR-26 integrated TIG torch.1set of 300A Earth clamp +3m 16mm² Cable+
Specifications：
HF start
Ampere knop
Na gas knop
- Input voltage(V) AC230V±15% 50/60HZ
- Rated Input current(A) max 20 amp
- NO-load voltage(V) 42
- Output Current Range (A) 10~160
- Post-flow time(s) 0~10
- Duty Cycle Imax(40℃) 60%
- NO-load loss(W) Arc-starting
- Efficiency(%) 85
- Power Factor 0.70
- Protection Class IP21
- Insulation Class B
- Welding thickness(mm) 0.3~5
- Weight(KG) 8.2
- Size(mm) 430*168*312
